2.2.1 Setting the operating environment for JP1/AJS3 for EAP (job control)

You can modify the operating environment for JP1/AJS3 for EAP (job control) by creating a job control environment setup file.

The environment setup file for job control (conf file) is located in the following directory. If the environment setup file does not exist at installation, the model file in the same directory is automatically copied as the environment setup file at installation.

Windows: (installation-path)\conf\conf
Linux: /etc/opt/jp1_am_r3/conf/conf

The following figure shows the contents of the model file on which the environment setup file to be created at installation is based.

For Windows

Figure 2‒1: Model file for the environment setup file for job control (for Windows)

For Linux

Figure 2‒2: Model file for the environment setup file for job control (for Linux)

In situations where Windows is used with an NTFS type file system, we recommend that you prevent tampering of the environment setup file information by defining the access permission so that only personnel with Administrators permission can edit the environment setup file.

Before reediting the environment setup file, make sure that no command has been executed for JP1/AJS3 for EAP.

The environment setup file syntax is as follows:

[section]
key=string

As the separator between section and key and between key and key, specify one or more new-line codes.
The character strings specified for section and key are case-insensitive.
The key specifications within the same section can be in any order.
If a semicolon (;) is placed at the beginning of a line, the line is handled as a comment statement.
When there are two or more section or key specifications having the same name, the value of the first specification is used.

In the following situations, JP1/AJS3 for EAP operates using the defaults.

An environment setup file is not created.
An illegal value is specified for the environment setup file (includes a syntax error).
The environment setup file cannot be read.

The keys that can be specified for the environment setup file are explained below for each section.

trace (trace section)

For trace (trace section), specify the name of the trace file that stores the trace level, trace file size, and trace information. The following table describes the keys that can be specified in the trace section.

Table 2‒1: Keys that can be specified for trace
Key	Value selectable as a string	Explanation
`Level`	`0` No trace `1` Standard level `2` Detail level `3` Debug level	Specify the trace level. If this `key` specification is omitted, a trace level of `2` is used. The trace volume per command for each trace level is as follows: When monitoring the completion of jobs: `1` (standard level): 10.2 kilobytes `2` (detail level): 12.0 kilobytes + (job execution time/completion monitoring interval) x 0.4 kilobytes `3` (debug level): 40.8 kilobytes + (job execution time/completion monitoring interval) x 0.9 kilobytes When not monitoring the completion of jobs: `1` (standard level): 2.0 kilobytes `2` (detail level): 12.0 kilobytes `3` (debug level): 40.8 kilobytes Normally, select Detail level. Debug level should be specified only if a failure occurs. If you select no trace, no information about the use of JP1/AJS3 for EAP will be collected.
`Size`	0 or 1 to 1,280,000 (in kilobytes)	Specify the trace file size. If you specify `0`, the trace file size is 2 gigabytes. If you omit this key, the trace file size is 307,200 kilobytes.^#1 To reduce the trace file size, delete the created trace file and then change the size.
`TargetDir`	Windows: Character string beginning with (`drive-name`)`:\` or remote resource name coded in UNC (Universal Naming Convention) format^#2 Linux: Character string beginning with `/`	Specify the directory for storing trace files. A trace file is created for each application. If you omit this key, a trace file is created for each application in the default directory^#3. Note If you specify `TargetFile`, any assignment to this `key` is ignored.
`TargetFile`	Windows: Character string beginning with (`drive-name`)`:\` or remote resource name coded in UNC (Universal Naming Convention) format^#2 Linux: Character string beginning with `/`	Trace information about all applications will be stored in the specified file. Note If you specify this `key`, any assignment to `TargetDir` is ignored.

#1: If you specify 307,200 kilobytes as the trace file size, the trace file can record at least seven days' worth of trace data when 100 jobs are executed per hour at trace level 2 (default).
#2: The remote resource name expressed in UNC format is \\computer-name\sharename, which is provided by Microsoft for networked folder/file name specification purposes. The folder and files must be kept accessible at all times.
#3: For details about the default directory that stores the trace file, see A. Directory List.

Important

A temporary directory is used when outputting trace files.

Under Windows, the folder specified by the TMP environment variable is used. In the TMP environment variable, specify a folder that can be accessed using the permissions of the user executing the command (if the default JP1/AJS service account is used when a JP1/AJS job is executed, the folder specified in the TMP system environment variable is used).

event (event section)

For event (event section), specify whether or not to generate events that are used in Windows application logs.

For Linux, make an event (event section) entry to specify whether to generate syslog messages. The following table describes the keys that can be specified in the event section.

Table 2‒2: Keys that can be specified for an event
Key	Value selectable as a string	Explanation
`ntevent`	`YES` or `NO`	This entry can be made when you are using Windows. Specify whether to generate Windows events. If this key specification is omitted, `YES` is used as the event generation condition.
`Syslog`	`YES` or `NO`	This entry can be made when you are using Linux. Specify whether or not to generate `syslog` messages. If this key specification is omitted, `YES` is used as the `syslog` message generation condition.

command (command section)

For command (command section), specify whether or not to check the work directory for JP1/AJS3 for EAP, the job completion monitoring interval, the appropriateness of a specified R/3 object, the time and interval for attempting to retry connection in the event of a communication error, and whether to output the R/3 job log to the standard error output file. Also, specify the code page number used when replacing the character code in the connected Unicode version SAP system. The following table describes the keys that can be specified in the command section.

Table 2‒3: Keys that can be specified for command
Key	Value selectable as a string	Explanation
`WorkDir`	Windows: Character string beginning with (`drive-name`)`:\` or remote resource name^#1 coded in Universal Naming Convention (UNC) format Linux: Character string beginning with `/`	Enter a full pathname to specify the work directory for commands. The work directory is set when you execute a command. If this `key` specification is omitted, the current directory at the time the command is executed is used. (When JP1/AJS is used, the work directory to be used for execution of a JP1/AJS job^#2 is used.)
`MonitorInterval`	1 to 65,535 (in seconds)	Specify the job completion monitoring interval. The value specified will be used if the job completion monitoring interval specification is omitted from the JP1/AJS3 for EAP `jr3bjsub`, `jr3bjcpy` or `jr3bjrel` command line. If this key specification is omitted, the job completion monitoring interval value is 5 seconds.
`CheckLevel`	`0` Does not query the R/3 system about the appropriateness of a specified value. `1` Queries the R/3 system about the appropriateness of a specified value regarding the following points before a job is created (no check of temporary variants).^#3 - Whether the specified ABAP program exists - Whether variants are necessary for the specified ABAP program - Whether the specified variant exists `2` Queries the R/3 system about the appropriateness of a specified value regarding the following points before a job is created (no check of temporary variants).^#3 - Whether the specified ABAP program exists - Whether the specified variant exists	Specify the level for determining whether to query the R/3 system about the validity of the R/3 object (ABAP program, variant) specified in the job step information when a job is registered (when the `jr3bjsub` command is executed). If you omit this key, the level is `2`.
`RetryTime`	0 to 65,535 (minutes)	Specify a period of time during which attempts are made to restore connection with the R/3 system if a communication error occurs during communication with the R/3 system. Repeated attempts to recover the connection will be made until the duration specified here elapses. If you specify `0`, no attempt is made to restore the connection and an error is reported immediately. Specification of this key is ignored if you specify this key together with the `RetryCount` key. If neither the `RetryTime` key nor the `RetryCount` key is specified, the default value of the `RetryCount` key (`3` times) takes effect^#4. To specify the interval between retries to restore connection, use the `RetryInterval` key.
`RetryCount`	0 to 65,535 (times)	Specify the number of retries for the connection with the R/3 system if a communication error occurs during communication with the R/3 system. If you specify `0`, no retry is attempted and an error is reported immediately. If you omit this key, the default value of `3` is assumed. The `RetryCount` key has priority over the `RetryTime` key if they are specified together. If neither the `RetryCount` key nor the `RetryTime` key is specified, the default value of the `RetryCount` key (`3` times) takes effect^#4. To specify the interval between retries to restore connection, use the `RetryInterval` key.
`RetryInterval`	1 to 65,535 (seconds)	If you specify the `RetryTime` or `RetryCount` key, specify the time interval between retries to restore connection with the R/3 system if a communication error occurs during communication with the R/3 system.^#5 If you specify the `RetryTime` key, a time longer than the time specified for the `RetryTime` key cannot be specified for the `RetryInterval` key. If you omit this key, the time interval is set to 180 seconds. The value of the `RetryInterval` key is invalid in the following cases: You specify `0` for the `RetryCount` key. You specify `0` for the `RetryTime` key without specifying the `RetryCount` key.
`JoblogAddToStderr`	`YES` or `NO`	Specify whether to output the R/3 job log to the standard error output at the same time that it is output to the specified output destination file. If you omit this key, `NO` is assumed for the output condition.
`Codepage`	0 to 9999 (unit: Codepage number)	Specify the code page number to be used for character code conversion in the connected Unicode version SAP system. To exchange Japanese character data with the Unicode version SAP system, specify `8000` as the Shift JIS code page number. To use Japanese UTF-8 code as the character code in Linux, specify the same code page number. When sending or receiving character data in English, this key does not need to be specified.

#1: The remote resource name expressed in UNC format is \\computer-name\sharename, which is provided by Microsoft for networked folder/file name specification purposes. This folder must be kept accessible at all times.
#2: For details about the work directory used when a JP1/AJS job is executed, see the manual JP1/Automatic Job Management System 3 System Design (Configuration) Guide.
#3: Network load will be greater than if a checklevel of 0 has been specified. The required time for command execution will also be longer.
#4: The valid key differs depending on whether you specify the RetryCount key, the RetryTime key, or both.

Key specification			`RetryCount`
			Not specified	Specified
			Not specified	`0`	`N` (> 0)
`RetryTime`	Not specified		(1) Retry three times	(4) Immediate error	(5) Retry `N` times
	Specified	`0`	(2) Immediate error	(4) Immediate error	(5) Retry `N` times
	Specified	`T` (> 0)	(3) Retry for `T` minutes	(4) Immediate error	(5) Retry `N` times

(1) If neither the RetryTime key nor the RetryCount key is specified, retry is set to three times, which is the default value of the RetryCount key.

(2) An error occurs because 0 is specified for the RetryTime key and the RetryCount key is not specified.

(3) The specification of the RetryTime key takes effect. Retry for T minutes is set.

(4) An error occurs immediately because 0 is specified for the RetryCount key.

(5) Because the specification of the RetryCount key has priority, retry is set to N times.

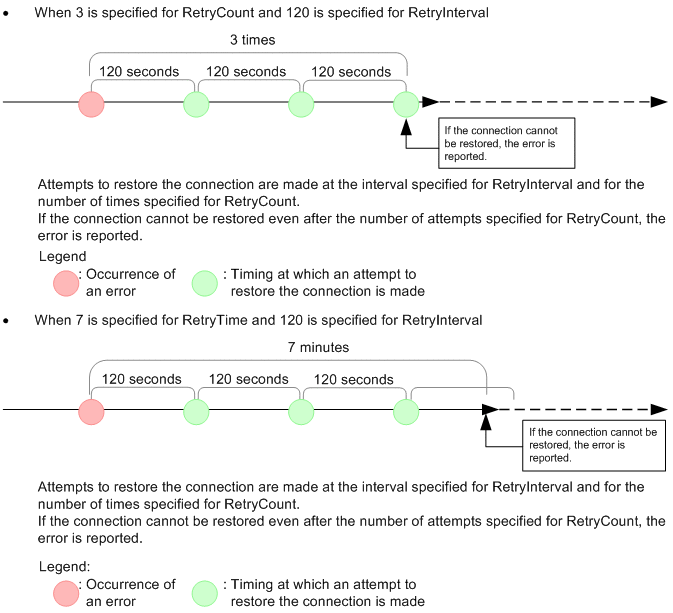

#5: The following shows the operation when the RetryCount and RetryTime keys are specified:

[Figure]

XMI (XMI section)

For XMI (XMI section), specify the XMI interface session audit level. The following table describes the keys that can be specified in the XMI section.

Table 2‒4: Keys that can be specified for XMI
Key	Value selectable as a string	Explanation
`AuditLevel`	`0` Records data write (change) operations. `1` Records data read errors. `2` Records data read operations. `3` Records external management system access.	Specify the XMI interface session audit level. If this `key` specification is omitted, the current XMI interface session audit level continues to be used.
