2.2 System configuration

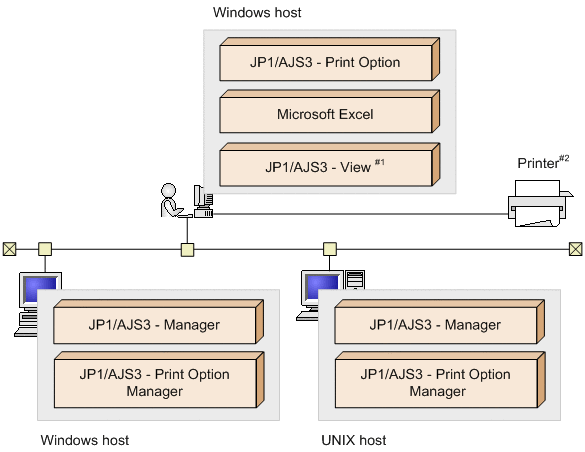

The following figure shows an example of the basic configuration of a system using JP1/AJS3 - Print Option.

Figure 2‒1: Example system configuration

[Figure]

#1

Required to collect information about job operation activity from JP1/AJS3 - View.

#2

Only the default printer can be used with the jprprint command.

The machines on which JP1/AJS3 - Print Option Manager and JP1/AJS3 - Print Option are installed do not need to be on the same LAN. The exchange of data between JP1/AJS3 - Print Option Manager and JP1/AJS3 - Print Option takes place by file transfer. For this reason, these programs can be run over a WAN or in an offline configuration provided that file transfer is achievable.
