2.9.2 Mixed use of the 32-bit and 64-bit versions

When the machines used for import and export are different, JP1/AJS3 - Definition Assistant with the same version and the same number of bits must be used on both machines. If the number of bits is not the same, the definition information management template requires conversion. For details, see ajsdaconvert in 7. Commands.

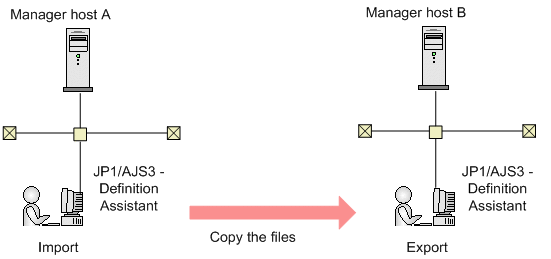

The following shows the system configuration when the import or export is performed. The explanation here uses the configuration where one machine for import and another for export are on different networks.

Suppose that the same version of JP1/AJS3 - Definition Assistant is installed in both machines.

When the machines for both import and export use the 32-bit version

No file conversion is required before an imported file is exported.

When the machines for both import and export use the 64-bit version

No file conversion is required before an imported file is exported.

When the machine for import uses the 32-bit version and the one for export uses the 64-bit version

Use the ajsdaconvert command to convert an imported file in xls format to xlsm format, and then perform the export.

When the machine for import uses the 64-bit version and the one for export uses the 32-bit version

If the number of definitions for files in xlsm format is 65,000 units or less, use the ajsdaconvert command to convert an imported file in xlsm format to xls format, and then perform the export.
