5.5 Example of a schedule information parameter

This subsection gives an example of a schedule information parameter to define a schedule for a jobnet which meets the conditions below.

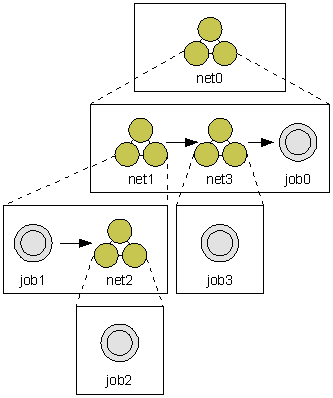

The following shows the configuration of the units.

The following table covers schedules to be defined.

Unit	Execution start time	Hold attribute for execution
net0	20XX/12/1 12:00	Hold
net1	20XX/12/1 12:00	Not hold
job1	Execute	Not hold
net2	20XX/12/1 14:00	Not hold
job2	Execute	Not hold
net3	20XX/12/1 13:00	Hold
job3	Not execute	N/A
job0	Execute	Not hold

Legend:

N/A: Not applicable

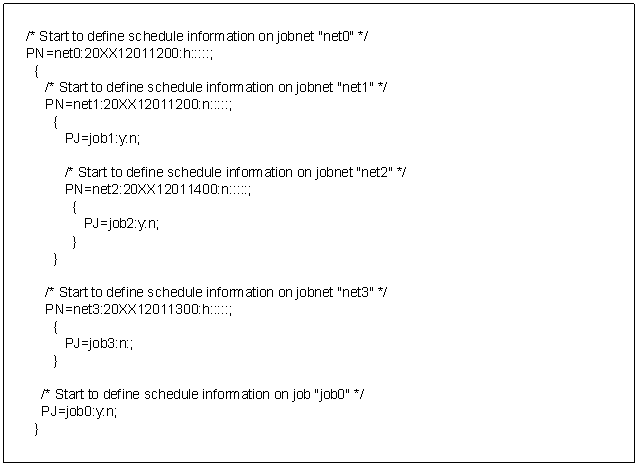

The following gives an example of description.
