5.3.6 Example of defining a jobnet connector

This subsection shows an example of defining jobnet connectors under the following conditions:

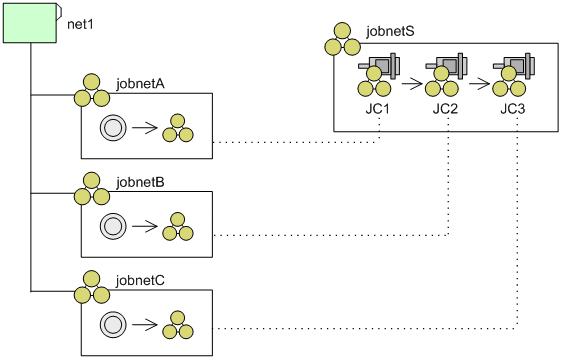

• Jobnet connectors for controlling the execution order of root jobnets jobnetA, jobnetB, and jobnetC are defined.

• Root jobnet jobnetA is first executed, then root jobnet jobnetB is executed, and finally root jobnet jobnetC is executed.

• The jobnet connectors are defined as JC1, JC2, and JC3 in jobnet jobnetS.



The following explains how you can define jobnet connectors under the above conditions.

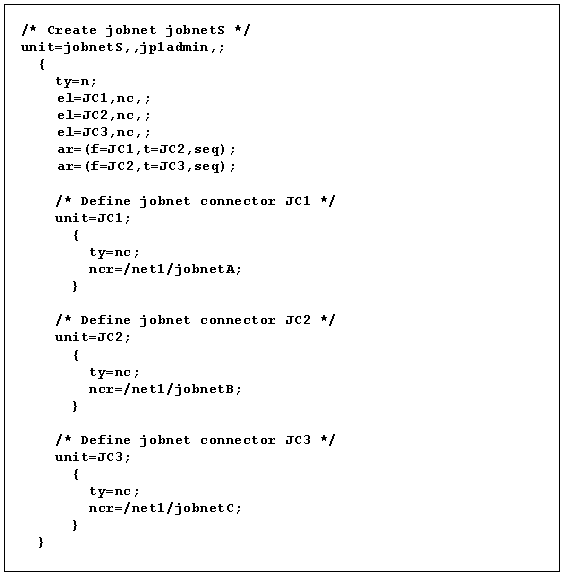

First, create jobnet jobnetS in which jobnet connectors will be defined. Then, in jobnetS, define jobnet connectors JC1, JC2, and JC3, which control the execution order of root jobnets jobnetA, jobnetB, and jobnetC.

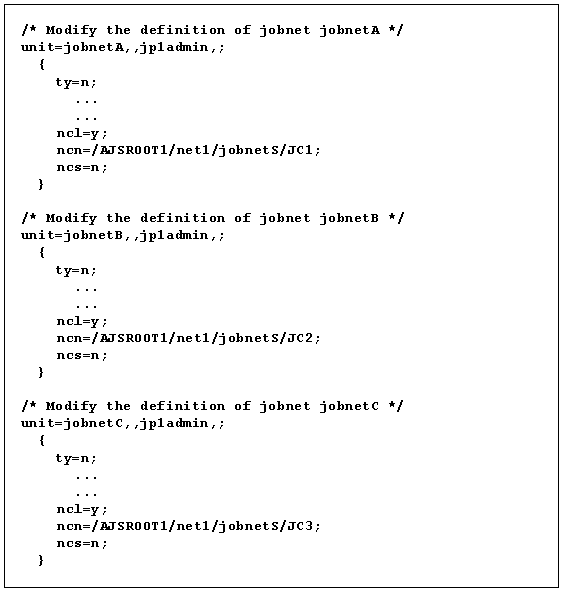

Next, for each of the root jobnets jobnetA, jobnetB, and jobnetC, define execution order control information (such as the name of the jobnet connector that controls the root jobnet).
