5.3.5 Example of defining start conditions for the root jobnet

This example covers creation of a new jobnet that meets the following conditions:

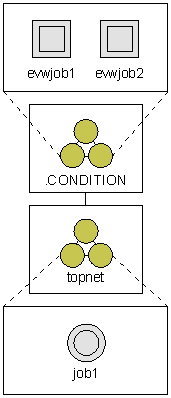

• The following root jobnet topnet (with the start conditions) is defined.



• For jobnet .CONDITION with the start conditions, set reception of an event whose event ID is 111 or 222.

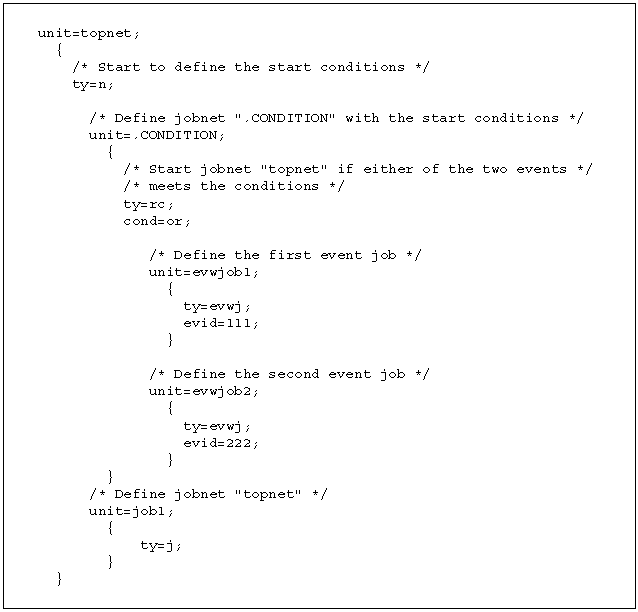

The following gives an example of definition.
