Hitachi

JP1 Version 12 JP1/Automatic Job Management System 3 Administration Guide


11.4.1 Exiting disaster recovery mode (when the logical host names at the main and remote sites are different)

Use the procedure in the following figure to exit disaster recovery mode when the logical host names at the main and remote sites are different.

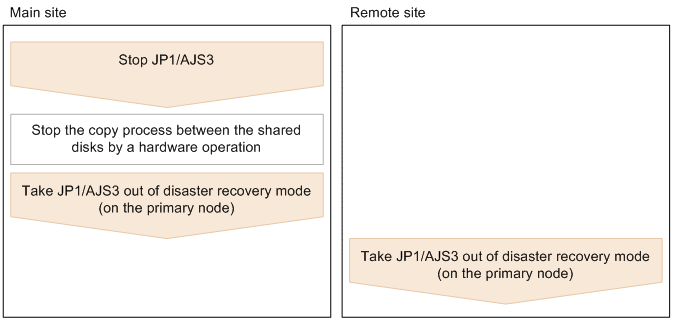

Figure 11‒20: Exiting disaster recovery mode (when the logical host names at the main and remote sites are different)

[Figure]

To stop the JP1/AJS3 system from operating in disaster recovery mode:

  1. Stop JP1/AJS3 at the main site.

    After JP1/AJS3 has stopped, use a hardware operation to stop the copy process between the shared disks.

  2. On the primary node at the main site, take JP1/AJS3 out of disaster recovery mode.

    Execute the following command at the main site:

    jajs_rpsite -m UNSET -h logical-host-at-main-site
  3. On the primary node at the remote site, take JP1/AJS3 out of disaster recovery mode.

    Execute the following command at the remote site:

    jajs_rpsite -m UNSET -h logical-host-at-remote-site
