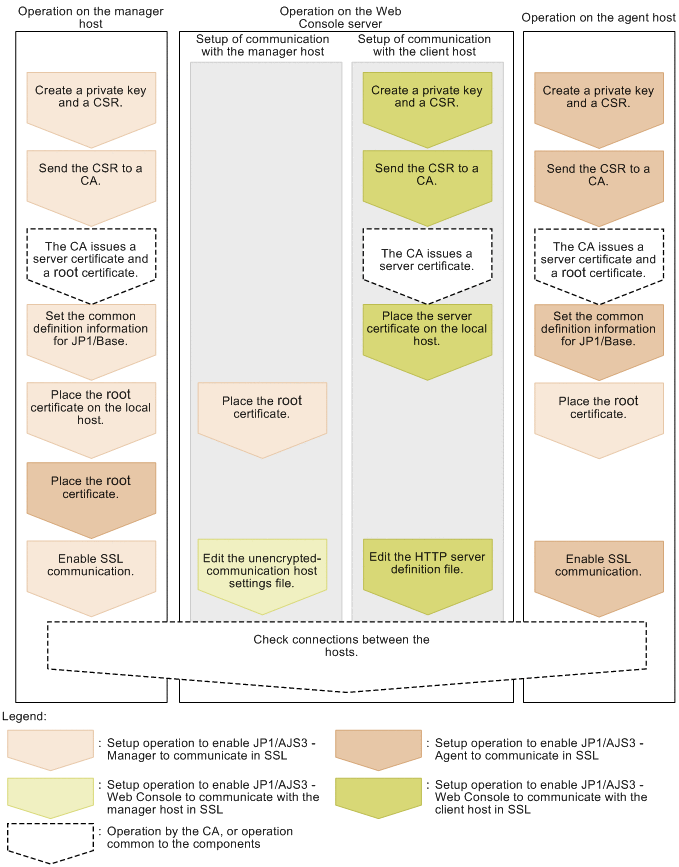

21.4.3 SSL communication setup procedure (when different server certificates are used for manager host and Web Console server)

(a) Setting for the SSL encryption of the communication between the manager host and Web Console server

The following describes the setting to enable JP1/AJS3 - Web Console to communicate with the manager host in SSL:

1. Open the unencrypted-communication host settings file (nosslhost.conf) by using a text editor.

   The unencrypted-communication host settings file (nosslhost.conf) of JP1/AJS3 - Web Console defines the manager hosts that do not encrypt messages in the communication with JP1/AJS3 - Web Console.

   For details about the nosslhost.conf file, see 21.4.6 Details on the settings in the unencrypted-communication host settings file (nosslhost.conf).

2. In the nosslhost.conf file, define the manager host that does not perform SSL communication with JP1/AJS3 - Web Console.

   By default, the nosslhost.conf file specifies an asterisk (*) for all manager hosts so that the communication with any manager host will not be encrypted. Edit the file as shown below so that only the manager hosts not communicating in SSL are specified while the manager hosts communicating in SSL are excluded.

   [NO_SSL_HOST]
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL
   ...
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL

   When communications with all manager hosts are to be encrypted, write only [NO_SSL_HOST].

3. Save the nosslhost.conf file by using UTF-8 encoding.

4. Check that the root certificates for the manager hosts are placed on the Web Console server.

   Perform deployment of the root certificates for the manager hosts as part of the setup operation to enable JP1/AJS3 - Manager to communicate in SSL. Check the operation to set up JP1/AJS3 - Manager.

(b) Setting for the SSL encryption of the communication between the Web Console server and client host

The following describes the setting to enable JP1/AJS3 - Web Console to communicate with the client host in SSL:

1. Create a private key by executing the applicable command.

   One of the following commands, execute the one corresponding to the version of JP1/AJS3 - Web Console that you are using:

   For JP1/AJS3 - Web Console version 11-10-02 or earlier, or version 11-00-10 or earlier.

   keygen -rand name-of-the-file-to-be-used-for-random-number-generation -out path-to-private-key-file -bits bit-length-of-private-key

   The path to be specified for the JP1/AJS3-Web-Console-installation-folder\uCPSB\httpsd\sbin\keygen for Windows, and /opt/jp1ajs3web/uCPSB/httpsd/sbin/keygen for Linux.

   For a version other than those listed above:

   • In Windows:

   openssl.bat genrsa -rand name-of-the-file-to-be-used-for-random-number-generation -out path-to-private-key-file bit-length-of-private-key

   The path of the openssl.bat is JP1/AJS3-Web-Console-installation-folder\uCPSB\httpsd\sbin\openssl.bat. For details about execution permission required for the openssl.bat, see the official website of OpenSSL.

   • In Linux:

   openssl.sh genrsa -rand name-of-the-file-to-be-used-for-random-number-generation -out path-to-private-key-file bit-length-of-private-key

   The path of the openssl.sh is /opt/jp1ajs3web/uCPSB/httpsd/sbin/openssl.sh. For details about execution permission required for the openssl.sh, see the official website of OpenSSL.

   Specify the following path as path-to-private-key-file.

   In Windows:

   JP1/AJS3-Web-Console-installatioon-folder\uCPSB\httpsd\conf\ssl\server\name-of-private-key-file

   In Linux:

   /opt/jp1ajs3web/uCPSB/httpsd/conf/ssl/server/name-of-private-key-file

   For details about the command for creating a private key, see E.1 Creating a private key.

   You can specify any value for name-of-private-key-file. As the default of this file name, httpsdkey.pem is specified in the HTTP server definition file (httpsd.conf) to be set later. Using the default file name eliminates the need to change the setting of the name of the private key file in the HTTP server definition file.

2. Create a CSR by executing the applicable command.

   One of the following commands, execute the one corresponding to the version of JP1/AJS3 - Web Console that you are using:

   For JP1/AJS3 - Web Console version 11-10-02 or earlier, or version 11-00-10 or earlier.

   certutil reqgen -sign signature-algorithm -key path-to-the-private-key-file -out path-to-the-CSR-file

   The path to be specified for the certutil command is JP1/AJS3-Web-Consoleinstallation-folder\uCPSB\httpsd\sbin\certutil for Windows, and /opt/jp1ajs3web/uCPSB/httpsd/sbin/certutil for Linux.

   For a version other than those listed above:

   • In Windows:

   openssl.bat req -new signature-algorithm -key path-to-the-private-key-file -out path-to-the-CSR-file

   The path of the openssl.bat is JP1/AJS3-Web-Console-installation-folder\uCPSB\httpsd\sbin\openssl.bat. For details about execution permission required for the openssl.bat, see the official website of OpenSSL.

   • In Linux:

   openssl.sh req -new signature-algorithm -key path-to-the-private-key-file -out path-to-the-CSR-file

   The path of the openssl.sh is /opt/jp1ajs3web/uCPSB/httpsd/sbin/openssl.sh. For details about execution permission required for the openssl.sh, see the official website of OpenSSL.

   For path-to-the-private-key-file, specify the path you specified in the command for creating a private key in step 1. For path-to-the-CSR-file, specify the path name of an output folder and the name of the CSR file.

   For details about the command for creating a CSR, see E.2 Creating a Certificate Signing Request (CSR).

3. Send the CSR to a CA.

   When the CA receives the CSR, the CA issues a server certificate.

4. Obtain the server certificate from the CA.

   You can specify any value for the name of the server certificate file. As the default of the file name, httpsd.pem is specified in the HTTP server definition file (httpsd.conf) to be set later. Using the default file name eliminates the need to change the setting of the name of the server certificate file in the HTTP server definition file.

5. In an environment in which server certificates are issued by intermediate CAs, there might be multiple intermediate certificates obtained from intermediate CAs. If there are multiple intermediate certificates, merge them into one file.

   If you obtain intermediate certificates, open them with a text editor, and then merge them according to their hierarchical structure.

6. Place the server certificate on the Web Console server.

   The folder to store the server certificate is as follows:

   In Windows:

   JP1/AJS3-Web-Console-installation-folder\uCPSB\httpsd\conf\ssl\server

   In Linux:

   /opt/jp1ajs3web/uCPSB/httpsd/conf/ssl/server

7. Edit the HTTP server definition file (httpsd.conf) to enable SSL communication.

   In the httpsd.conf file, cancel comments in the SSL communication setting section to enable SSL communication.

   An example of changing the httpsd.conf file in Windows is shown below. In this example, the port number for communication, the name of the server certificate file, and the name of the private key file are not changed from the defaults, and only hash marks (#) indicating comments are edited. (The default of the server certificate file name is httpsd.pem, and the default of the private key file name is httpsdkey.pem.) If you place an intermediate certificate file, add the SSLCACertificateFile entry and specify the path of the intermediate certificate file that you placed. In the following example, intermediate.pem is specified as the name of the intermediate certificate file. If you do not place an intermediate certificate file, you do not need to add this entry.

   Before change

   ...
   Listen 22252
   #Listen [::]:22252
   SSLDisable

   #Listen 22253
   #Listen [::]:22253
   #<VirtualHost *:22253>
   #  ServerName MyServer
   #  SSLEnable
   #  SSLCertificateFile "C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/conf/ssl/server/httpsd.pem"
   #  SSLCertificateKeyFile "C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/conf/ssl/server/httpsdkey.pem"
   #  AllowEncodedSlashes On
   #</VirtualHost>
   ...

   After change

   ...
   #Listen 22252
   #Listen [::]:22252
   SSLDisable

   Listen 22253
   #Listen [::]:22253
   <VirtualHost *:22253>
     ServerName MyServer
     SSLEnable
     SSLCertificateFile "C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/conf/ssl/server/httpsd.pem"
     SSLCertificateKeyFile "C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/conf/ssl/server/httpsdkey.pem"
     SSLCACertificateFile "C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/conf/ssl/server/intermediate.pem"
     AllowEncodedSlashes On
   </VirtualHost>
   ...

   If the port number for SSL communication, name of server certificate file, and name of the private key file have been changed in the environment being used, also change the settings in the httpsd.conf file to adjust to the environment.

   The following table lists the defaults settings in the httpsd.conf file.

   Table 21‒12: Defaults in the httpsd.conf file

   No.	Item	Default
   1	SSL communication port number	22253
   2	Server certificate file name	httpsd.pem
   3	Private key file name	httpsdkey.pem

   For details about the httpsd.conf file, see 3.4.5 Details on the settings in the HTTP server definition file (httpsd.conf) (for Windows) or 13.3.5 Details on settings in the HTTP server definition file (httpsd.conf)(for Linux).

8. Edit the HTTP server definition file to enable the SSL communication log output.

   In the httpsd.conf file, release the LogFormat and CustomLog settings from the comment status to enable the SSL communication log output. An example of changing the httpsd.conf file in Windows is shown below.

   Before change

   ...
   #LogFormat "%t %{version}c %{cipher}c %{clientcert}c" hws_ssl
   #CustomLog "|\"\"C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/sbin/rotatelogs2.exe\" \"C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/logs/ssl\" 10240 8\"" hws_ssl
   ...

   After change

   ...
   LogFormat "%t %{version}c %{cipher}c %{clientcert}c" hws_ssl
   CustomLog "|\"\"C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/sbin/rotatelogs2.exe\" \"C:/Program Files/HITACHI/JP1AJS3WEB/uCPSB/httpsd/logs/ssl\" 10240 8\"" hws_ssl
   ...

9. Restart the JP1/AJS3 HTTP Server service.

(a) Setup to enable the Web GUI to communicate in SSL

The following describes the setup operation to enable the Web GUI to communicate in SSL:

1. Enable SSL communication with your browser.

   You must enable SSL and TLS in your web browser beforehand. For details about how to enable them, see the documentation for your browser.

   If SSL and TLS are disabled, the login window does not appear even when you access the URL for SSL communication. Also, if you disable SSL and TLS after login, subsequent operation will be disabled.

(b) Setup to enable the user application to communicate in SSL

The method of setting to enable the user application to communicate in SSL varies with the programming language used for the user application.

Develop the user application by using the setup method provided in each programming language.

(a) Checking the connection of SSL communication between the manager host and JP1/AJS3 - View host

1. From JP1/AJS3 - View, log in to JP1/AJS3 - Manager.

2. Check the integrated trace log of the manager host to determine whether the KNAD3995-I and KAVS0532-I messages have been output.

   The KNAD3995-I message indicates that SSL communication is enabled.

   The KAVS0532-I message indicates that the user has normally logged in to JP1/AJS3 - Manager by using JP1/AJS3 - View.

(b) Checking the connection of SSL communication between the manager host and agent host

1. From JP1/AJS3 - View, log in to JP1/AJS3 - Manager.

2. Create a jobnet by using JP1/AJS3 - View, define PC or Unix jobs under the jobnet, and specify the agent host to be connected by SSL communication in the Exec-agent field.

3. Register the defined jobnet for immediate execution.

4. Check that the jobnet ends normally.

   When the jobnet ends normally, the SSL communication between the manager and agent hosts is operating normally.

(c) Checking the connection of SSL communication between the Web Console server and Web GUI

1. Access the following URL by using the Web GUI:

   https://host-name-or-IP-address-of-Web-Console-server:SSL-communication-port-number/ajs/login.html

   The default of SSL-communication-port-number is 22253.

   When the login window appears normally, SSL communication is operating normally.

(d) Checking the connection of SSL communication between the manager host and Web Console server

1. From the Web GUI, log in to JP1/AJS3 - Manager.

2. Check the integrated trace log of the manager host to determine whether the KNAD3995-I message has been output.

   The KNAD3995-I message indicates that SSL communication is enabled.
