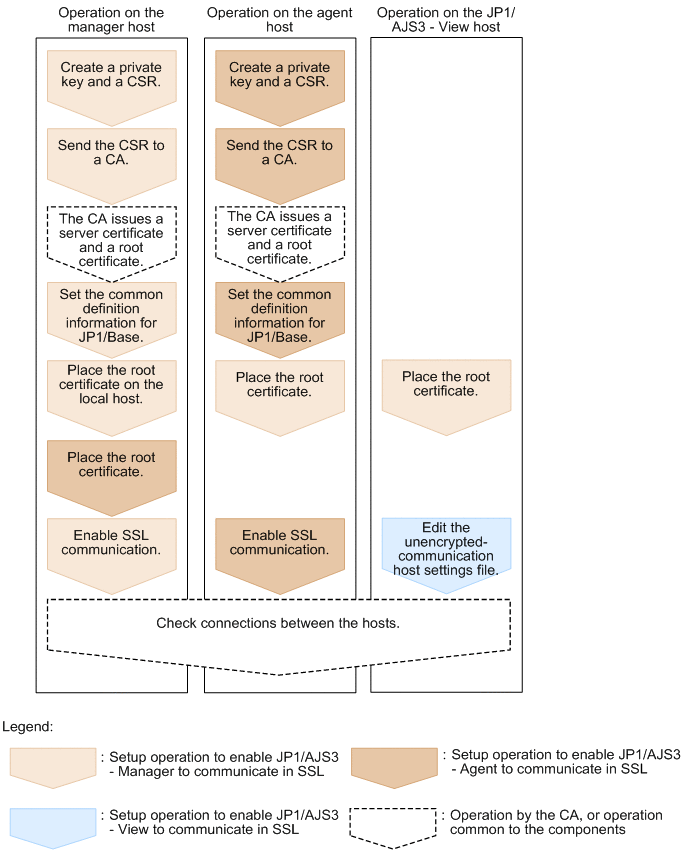

21.4.2 SSL communication setup procedure (in a manager/agent configuration)

(1) Setup to enable JP1/AJS3 - Manager to communicate in SSL

The following describes the setup operation to enable JP1/AJS3 - Manager to communicate in SSL:

1. Create a private key and CSR by using JP1/Base.

   For details about how to create a private key and a CSR, see the JP1/Base User's Guide.

2. Send the CSR to a CA.

   When the CA receives the sent CSR, the CA issues a server certificate and a root certificate to verify the server certificate.

3. Obtain the server certificate and root certificate from the CA.

4. If a server certificate issued by an intermediate CA excludes an intermediate certificate, obtain an intermediate certificate from the intermediate CA, and put the server certificate and intermediate certificate together into a file.

   If the server certificate excludes the intermediate certificate, validity of the server certificate cannot be verified. Obtain the intermediate certificate to verify that the server certificate is valid.

   After obtaining the intermediate certificate, open the server certificate and intermediate certificate by using a text editor, copy the content of the intermediate certificate, and paste the copy at the end of the server certificate.

   If multiple intermediate certificates exist, integrate all certificates according to their hierarchical structure into a file.

5. Stop the JP1/AJS3 and JP1/Base services.

6. Place the private key and server certificate in a folder, and specify the path to the folder in the common definition information CERTIFICATEFILE of JP1/Base.

   For details about the common definition information CERTIFICATEFILE of JP1/Base, see the JP1/Base User's Guide.

7. Deploy a PEM-format root certificate to communication-destination hosts.

   To verify the server certificate for the manager host at the communication destination (client), deploy, to communication-destination hosts, the root certificate for the CA that issued the server certificate for the manager host.

   The following lists the hosts to which to deploy the root certificate:

   • Working manager host (local host)

   • All manager hosts for which communication is to be established

   • All agent hosts for which communication is to be established (when the value of the AJS3SSL environment parameter is ALL)

   • All JP1/AJS3 - View hosts for which communication is to be established

   The following table describes the paths to the storage folders.

   Table 21‒10: Storage folders for root certificate

   No.	Host type	Path to storage folder (in Windows)	Path to storage folder (in Linux)
   1	Manager host	Root certificates are stored in a folder of JP1/Base. For details, see the JP1/Base User's Guide.
   2	Agent host
   3	JP1/AJS3 - View host	JP1/AJS3 - View-installation-folder\conf\ssl\rootcer	Not applicable

   When a root certificate has already been deployed to a communication-destination host, check whether the CA that issued the deployed root certificate is the same as the CA from which the server certificate was obtained as described in step 3.

   When the CA is the same:

   You can use the root certificate deployed already. You do not need to overwrite the root certificate.

   When the CA is different:

   Bind the already deployed root certificate and the obtained root certificate together in a file. Then, bind the certificates in a way that allows individual root certificates to be associated with the corresponding parts of the bound root certificate. This is to enable any expiring part of the bound root certificate to be replaced appropriately. Because root certificates are Base64-encoded, in the file of bound root certificates, you cannot see which parts of the file correspond to individual root certificates.

   For details, see the JP1/Base User's Guide.

8. Check that the root certificates for the agent hosts are placed on the manager hosts.

   Perform deployment of the root certificates for the agent hosts as part of the setup operation to enable JP1/AJS3 - Agent to communicate in SSL. Check the operation to set up JP1/AJS3 - Agent.

9. Enable SSL communication.

   For details about how to enable SSL communication, see the description of the communication encryption function in the JP1/Base User's Guide.

To Page Top

(2) Setup to enable JP1/AJS3 - Agent to communicate in SSL

The following describes the setup operation to enable JP1/AJS3 - Agent to communicate in SSL:

1. Create a private key and CSR by using JP1/Base.

   For details about how to create a private key and a CSR, see the JP1/Base User's Guide.

2. Send the CSR to a CA.

   When the CA receives the sent CSR, the CA issues a server certificate and a root certificate to verify the server certificate.

3. Obtain the server certificate and root certificate from the CA.

4. If a server certificate issued by an intermediate CA excludes an intermediate certificate, obtain an intermediate certificate from the intermediate CA, and put the server certificate and intermediate certificate together into a file.

   If the server certificate excludes the intermediate certificate, validity of the server certificate cannot be verified. Obtain the intermediate certificate to verify that the server certificate is valid.

   After obtaining the intermediate certificate, open the server certificate and intermediate certificate by using a text editor, copy the content of the intermediate certificate, and paste the copy at the end of the server certificate.

   If multiple intermediate certificates exist, integrate all certificates according to their hierarchical structure into a file.

5. Stop the JP1/AJS3 and JP1/Base services.

6. Place the private key and server certificate in a folder, and specify the path to the folder in the common definition information CERTIFICATEFILE of JP1/Base.

   For details about the common definition information CERTIFICATEFILE of JP1/Base, see the JP1/Base User's Guide.

7. Deploy a PEM-format root certificate to all the manager hosts for which communication is to be established.

   To verify the server certificate for the agent host at the communication destinations (manager hosts) deploy the root certificate for the CA that issued the server certificate for the agent host to communication-destination hosts. For details about the path to the certificate storage folder, see the JP1/Base User's Guide.

   When a root certificate has already been deployed to a communication-destination manager host, check whether the CA that issued the deployed root certificate is the same as the CA from which the server certificate was obtained as described in step 3.

   When the CA is the same:

   You can use the root certificate deployed already. You do not need to overwrite the root certificate.

   When the CA is different:

   Bind the already deployed root certificate and the obtained root certificate together in a file. Then, bind the certificates in a way that allows individual root certificates to be associated with the corresponding parts of the bound root certificate. This is to enable any expiring part of the bound root certificate to be replaced appropriately. Because root certificates are Base64-encoded, in the file of bound root certificates, you cannot see which parts of the file correspond to individual root certificates.

   For details, see the JP1/Base User's Guide.

8. Check that the root certificates for the manager hosts are placed on the agent hosts.

   Perform deployment of the root certificates for the manager hosts as part of the setup operation to enable JP1/AJS3 - Manager to communicate in SSL. Check the operation to set up JP1/AJS3 - Manager.

9. Enable SSL communication.

   For details about how to enable SSL communication, see the description of the communication encryption function in the JP1/Base User's Guide.

To Page Top

(3) Setup to enable JP1/AJS3 - View to communicate in SSL

The following describes the setup operation to enable JP1/AJS3 - View to communicate in SSL:

1. If you have logged in from JP1/AJS3 - View to JP1/AJS3 - Manager, log out of JP1/AJS3 - Manager.

2. Open the unencrypted-communication host settings file (nosslhost.conf) by using a text editor.

   The unencrypted-communication host settings file (nosslhost.conf) of JP1/AJS3 - View defines the manager hosts that do not encrypt messages in the communication with JP1/AJS3 - View.

   For details about the nosslhost.conf file, see 21.4.6 Details on the settings in the unencrypted-communication host settings file (nosslhost.conf).

3. In the nosslhost.conf file, define the manager host that does not perform SSL communication with JP1/AJS3 - View.

   By default, the nosslhost.conf file specifies an asterisk (*) for all manager hosts so that the communication with any manager host will not be encrypted. Edit the file as shown below so that only the manager hosts not communicating in SSL are specified while the manager hosts communicating in SSL are excluded.

   [NO_SSL_HOST]
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL
   ...
   host-name-or-IP-address-of-a-manager-host-that-does-not-communicate-in-SSL

   When communications with all manager hosts are to be encrypted, write only [NO_SSL_HOST].

4. Save and close the nosslhost.conf file.

5. Check that the root certificates for the manager hosts are placed on the View hosts.

   Perform deployment of the root certificates for the manager hosts as part of the setup operation to enable JP1/AJS3 - Manager to communicate in SSL. Check the operation to set up JP1/AJS3 - Manager.

To Page Top

(4) Checking the connection of SSL communication

The following describes the procedure for checking that the communication between components is encrypted:
