5.4.1 Overview of disaster recovery

Disaster recovery refers to measures that are taken for unexpected events such as system shutdown caused by a large-scale disaster.

JP1/AJS3 supports disaster recovery that copies JP1/AJS3 data on the shared disk to a shared disk at a remote site. If the system fails because of an event such as a disaster, the JP1/AJS3 system at the remote site can continue operation by using the copied data. The disk copy and mirroring functionality of the hardware is used to copy data between shared disks.

The following figure shows the concept of disaster recovery supported by JP1/AJS3.

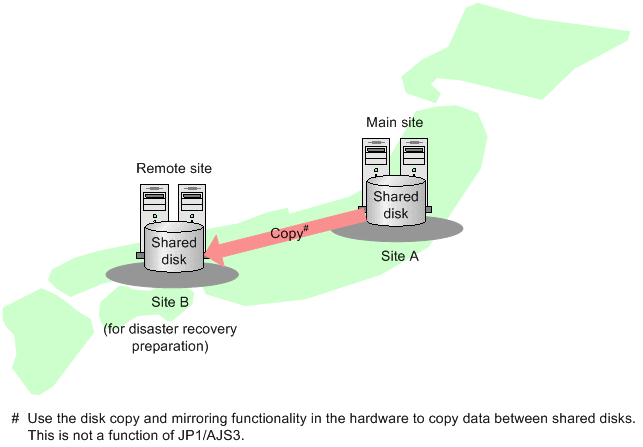

Figure 5‒4: Concept of disaster recovery supported by JP1/AJS3

For details about JP1/AJS3 disaster recovery operation, see 11. Disaster Recovery in JP1/AJS3 in the JP1/Automatic Job Management System 3 Administration Guide.

This subsection describes the considerations required for using JP1/AJS3 for disaster recovery.
