7.1 Correcting the detailed definition of a jobnet

Correct the detailed definition of a jobnet registered for execution.

Prerequisites

The following explanation assumes that the execution of the jobnet has been completed.

Procedure

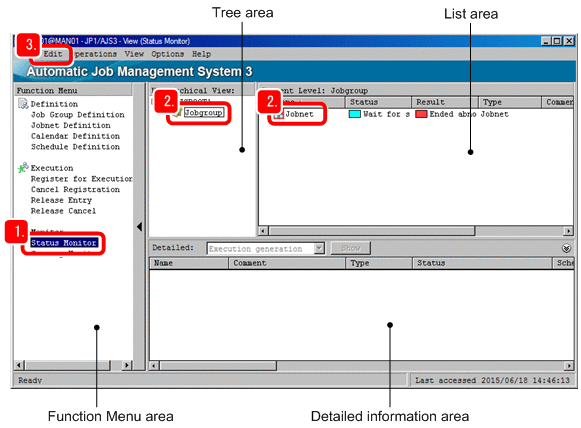

1. In the JP1/AJS3 - View window (Main window), in function menu area, select Status Monitor.



2. In the tree area, select the job group. In the list area, select the jobnet.

3. Select Edit, and then Properties.

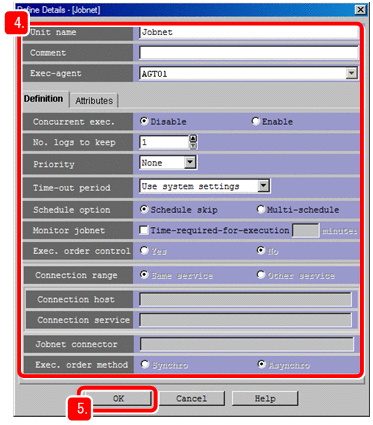

   The Define Details - [Jobnet] dialog box appears.

4. Correct the detailed definition.



   Important

   You cannot correct information in Unit name by using the method described here. To correct the unit name, you need to cancel the execution registration of the jobnet.

5. Click the OK button.

   The Define Details - [Jobnet] dialog box closes.

Result

You were able to correct the detailed definition of the jobnet.

Postrequisites

Re-execute the jobnet of which you corrected the detailed definition.

Related topics

• 7.2 Re-executing a jobnet
