4.2 Defining a jobnet

Define a jobnet in a job group.

Procedure

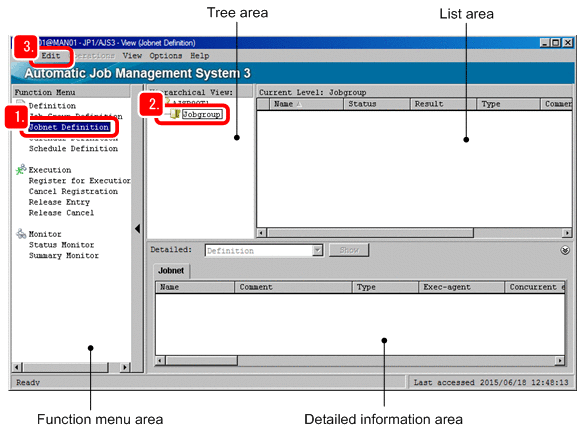

  1. In the JP1/AJS3 - View window (Main window), in function menu area, select Jobnet Definition.

    [Figure]

  2. In the tree area, select the job group.

  3. Select Edit, New, and then Jobnet.

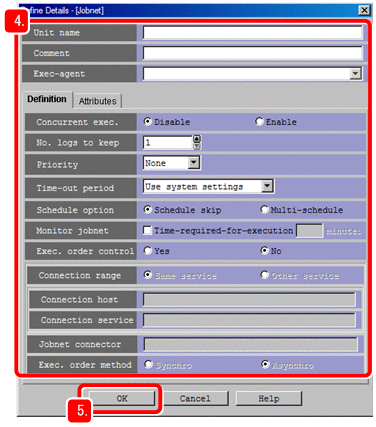

    The Define Details - [Jobnet] dialog box appears.

  4. Define details about the jobnet.

    [Figure]

    The following describes the major setting items:

    No.

    Setting item

    Description

    1

    Unit name

    Specify the name of the jobnet.

    2

    Comment

    Enter any comment.

    3

    Exec-agent

    Specify the name of an execution agent that executes the jobnet.

    Tip

    If you specify Exec-agent in the detailed definition of the jobnet, jobs in that jobnet will be executed by the specified execution agent even if an execution agent is not specified for the jobs.

  5. Click the OK button.

    The Define Details - [Jobnet] dialog box closes, and then the jobnet you have defined appears in the list area of the JP1/AJS3 - View window (Main window).

Result

The jobnet is defined.

Postrequisites

Define jobs in the jobnet.
