4.1 Defining a job group
Define a job group.
Procedure
-

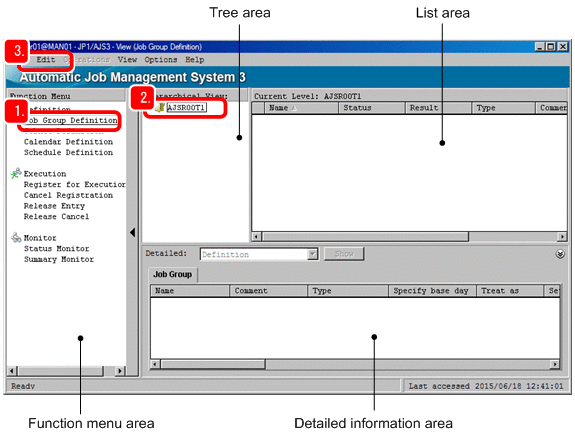

In the JP1/AJS3 - View window (Main window), in function menu area, select Job Group Definition.
-
In the tree area, select the job group.
-
Select Edit, New, and then Job Group.

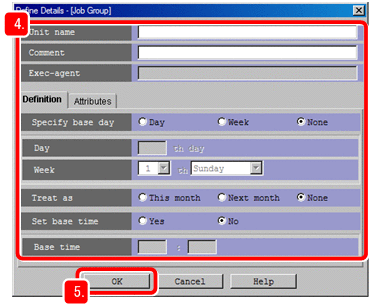

The Define Details - [Job Group] dialog box appears.
-
Define details about the job group.
The following describes the major setting items:
No.
Setting item
Description
1
Unit name
Specify the name of the job group.
2
Comment
Enter any comment.
-
Click the OK button.
The Define Details - [Job Group] dialog box closes, and then the job group you have defined appears in the list area of the JP1/AJS3 - View window (Main window).
Result
The job group is defined.
Postrequisites
Define a jobnet in the job group.
