16.14.1 Setting an assigned item for asset numbers

This subsection describes how to set the asset number of new asset information when JP1/IT Desktop Management 2 - Manager's management information is imported.

To set an assigned item for asset numbers, use the Assigned item dialog box, which is displayed by clicking the Browse button for Asset information.Asset No. in the ITDM2 Management Information Acquisition window.

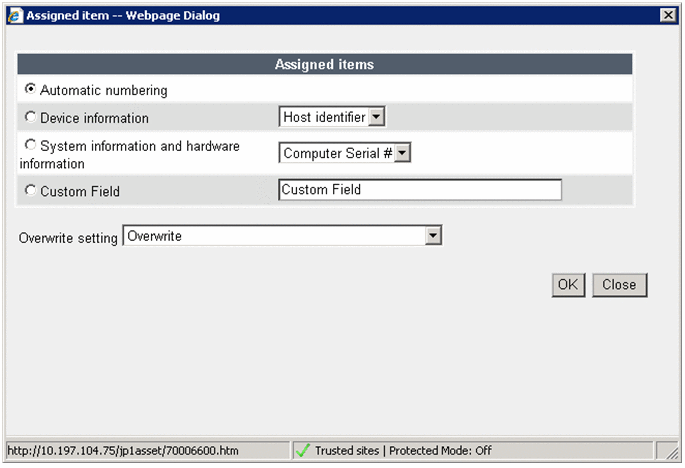

Figure 16‒40: Assigned item dialog box

In the Assigned item dialog box, select an assigned item.

• Auto (default)

  Sets a number assigned automatically by the asset management system as the asset number.

• Device information

  Selects an item to be assigned to the asset number from JP1/IT Desktop Management 2 - Manager's device information. The item selected from the drop-down list is set as the asset number.

• System information and hardware information

  Selects an item to be assigned to the asset number from JP1/IT Desktop Management 2 - Manager's system information and hardware information. The item selected from the drop-down list is set as the asset number.

• Custom field

  When you specify a JP1/IT Desktop Management 2 - Manager's custom field, management information is obtained and set as the asset number. If the corresponding item name does not exist, nothing is set.

Set the update method for the value selected to the item to be assigned to Overwrite setting.

• Overwrite (default)

  Even if a value is already registered in the asset management database, it is overwritten by the value in the collected ITDM2 management information. If the applicable value in the collected ITDM2 management information is NULL or N/A, it is overwritten by the automatically assigned value (asset ID). However, no value is registered if Asset No. is selected for Assignment method of Action settings in the ITDM2 Management Information Acquisition window.

• Overwrite (Do not overwrite when there is no data.)

  Even if a value is already registered in the asset management database, it is overwritten with the value in the collected ITDM2 management information. However, if the applicable value in the collected ITDM2 management information is NULL or N/A, it is not overwritten.

• Not overwritten

  If a value is already registered in the asset management database, it is not overwritten.
