16.14 Setting assigned items (ITDM2 Management Information Acquisition)

When management information collected by JP1/IT Desktop Management 2 - Manager is imported into the asset management database, this job enables you to relate Asset Console's managed items and JP1/IT Desktop Management 2 - Manager's management items. It also enables you to specify the default values for status and type when management information is imported. For details about the type of management information that is assigned to Asset Console's managed items and the information that is acquired, see 19.1 Management information that can be acquired from JP1/IT Desktop Management 2 - Manager.

To set the items to be assigned, start from the ITDM2 Management Information Acquisition window, which is displayed by clicking the ITDM2 Management Information Acquisition job menu. The following figure shows the ITDM2 Management Information Acquisition window.

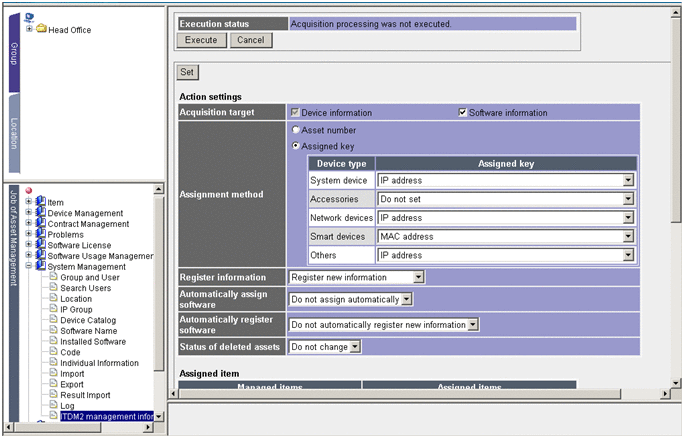

Figure 16‒39: ITDM2 Management Information Acquisition window

This window lists Asset Console's managed items and the items that are assigned to them. Managed items lists in the format class-name.property-name the items that have been set to be displayed by Customize Managed Items.

To set an assigned item, click the Browse button for the corresponding managed item.

Organization of this section

• 16.14.1 Setting an assigned item for asset numbers

• 16.14.2 Setting an assigned item for user names

• 16.14.3 Setting assigned items for group and location

• 16.14.4 Setting assigned items for device types

• 16.14.5 Adding items to be acquired from ITDM2 management information

• 16.14.6 Changing a default value when ITDM2 management information is registered
