A.5 Output format of NetExec error log files

A NetExec error log file contains information about errors that occur during execution of the NetExec command. If you cannot determine the cause of an error by referring to the trace file, log file, and event log, acquire a NetExec log file and then contact the support center.

Organization of this subsection

(1) File name
(2) Output format
(3) File size
(4) Output specification

(1) File name

Client system

The file name is STXNetExec_C_xx.LOG^#1.

This file is output to the STXNetExec_Client folder that is created in the LOG folder^{#2, 3} in the installation folder.
Server system

The file name is STXNetExec_S_xx.LOG^#1.

This file is output to the STXNetExec_Server folder that is created in the LOG folder^{#2, 4} in the installation folder.

#1

xx is a numeric value in the range 01 to 30. One trace file is output for each execution of a process of SPTXNetx.exe (which controls NetExec command execution).

#2

The folder is created in the script log file folder (system-drive\ProgramData\Hitachi\Script\Log).

#3

In versions earlier than JP1/Script 07-00, the folder is created in installation-folder\Data\LOG.

#4

In versions earlier than JP1/Script 07-00, the folder is created in installation-folder\Data\LOG.

To Page Top

(2) Output format

Figure A-7 shows the output format of the error log in the client system, and Figure A-8 shows the output format of the error log in the server system.

Figure A‒7: Output format of the error log in the client system

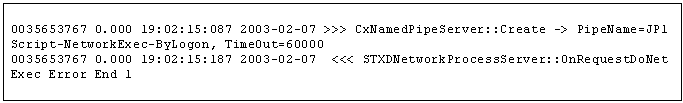

Figure A‒8: Output format of the error log in the server system

To Page Top

(3) File size

The size of an error log file for both client and server systems is as follows:

Maximum size of one file: (100 bytes/line) * 100 lines = approximately 10 kilobytes

Maximum number of files: 30

Maximum value: Approximately 10 kilobytes + 30 files = approximately 300 kilobytes

To Page Top

(4) Output specification

As the default, the installer sets the following registry and outputs the error log:

Registry key

HKEY_LOCAL_MACHINE\SOFTWARE\Hitachi\JP1/Script\SPTX\Option

Value name 1

Net_Trace

Value datatype 1

REG_DWORD

Value 1

Whether or not to output trace and its output level:

0: Do not output trace.

1: Output only error trace and delete the file at normal termination (this is the default value).

When the setting takes effect

The setting takes effect the next time the script file is executed.

Value name 2

Net_Trace_Directory

Value datatype 2

REG_SZ

Value 2

Trace output destination folder name (initial value: "script log folder")

When the setting takes effect

The setting takes effect the next time the script file is executed.
