A.3 Output format of user trace files
A user trace file is output when Target_File is specified in the first argument of the Message command.
- Organization of this subsection
(1) File name
The file name (extension .TXT) can be any name assigned by the user.
(2) Output format

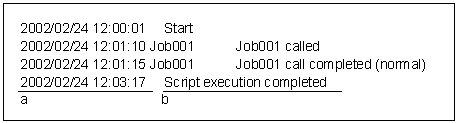

Figure A-5 shows the output format of a user trace file.
|
|
![[Figure]](GRAPHICS/ZU0F0A05.GIF)
- a.
-
Date and time at which a trace was output
- b.
-
Output message
(3) Maximum lines and columns
Trace information can be output to a user trace file to a maximum of between 100 and 9,999 lines and 128 to 1,024 columns.
You can change these output limits in the Trace Information page, accessed by choosing File, Set Execution Environment in the Script Manager window.
If the output trace information exceeds the maximum line count, the system returns to the first line and outputs the new information, replacing the existing information. If the maximum column count is exceeded, the excess columns are deleted.
