8.6.3 MessageBox (display a message in a dialog box)

Purpose

Displays a specified message in a dialog box. Buttons or icons may be added. When the box has buttons, the command returns a value indicating which button the user clicked.

Syntax

MessageBox (Text, [Buttons], [DefaultBtn], [IconStyle], [ModalStyle] [, Title])

Arguments

Text

Specify the message string to be displayed in the dialog box. Write a character string or a variable that stores this value. If #Option = NOCHANGE is missing from the head of the script file, any \r, \n, \t, or \\ strings included in the message text are processed as control codes.

For details about control codes, see 6.1.11 Script coding conventions.

Buttons

Specify the types and number of buttons to add to the dialog box as one of the following values:

Value	Meaning
OK	Display an OK button only.
OKCancel	Display OK and Cancel buttons.
YesNo	Display Yes and No buttons.
YesNoCancel	Display Yes, No, and Cancel buttons.
RetryCancel	Display Retry and Cancel buttons.
AbortRetryIgnore or Abort	Display Abort, Retry, and Ignore buttons.

This value is optional. If you omit this value, the dialog box will have an OK button only.

DefaultBtn

Specify which of the buttons you set in the Buttons argument is to be the default button. Enter one of the following values:

Value	Meaning
1	Make the first button the default.
2	Make the second button the default.
3	Make the third button the default.

This value is optional. If you omit this value, 1 is assumed.

IconStyle

Specify the style of the icon to add to the dialog box as one of the following values:

Value	Meaning
Exclamation or Ex	Exclamation mark (!)
Information or Info	Letter i inside a circle
Question	Question mark (?)
Stop	STOP

This value is optional. If you omit this value, the dialog box will have no icon.

ModalStyle

Specify whether the dialog box is modal. Use either of the following values:

Value	Meaning
ApplicationModal or AppliModal	Set the dialog box to Application Modal. The user can move and work in a window in another application.
SystemModal or SysModal	Set the dialog box to System Modal. Use this value for notifying the user of a critical error that requires immediate attention.

This value is optional. If you omit this value, ApplicationModal is assumed.

Title

Specify the title to be displayed in the title bar as a character string or as a variable that stores this value.

This value is optional. If you omit this value, JP1/Script MessageBox appears in the title bar.

Description

The MessageBox command displays a message box according to the specified parameters. The command returns True on successful execution, or False if an error occurs.

The value of the button that the user chooses is stored in the _MSG_RTN_ reserved variable as either of the following:

Value	Button chosen by the user
OK	OK
CANCEL	Cancel
ABORT	Abort
RETRY	Retry
IGNORE	Ignore
YES	Yes
NO	No

In a dialog box with a Cancel button, pressing the Esc key has the same effect as clicking Cancel.

Note

You cannot use this command in a script started as a service. An execution error occurs if this command is used.

Example

MessageBox ("Are you sure you want to exit?", OKCancel, ,_
             Question)
If  _MSG_RTN_ <> CANCEL  Then
  Exit
End

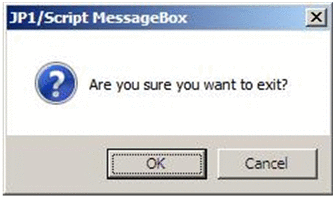

Display example

JP1/Script version

Supported from JP1/Script 01-00.
