4.4.27 Function Key Properties (Style) dialog box
The Function Key Properties dialog box appears when you select and double-click a function key control in the menu form view of the Script Menu Editor window.

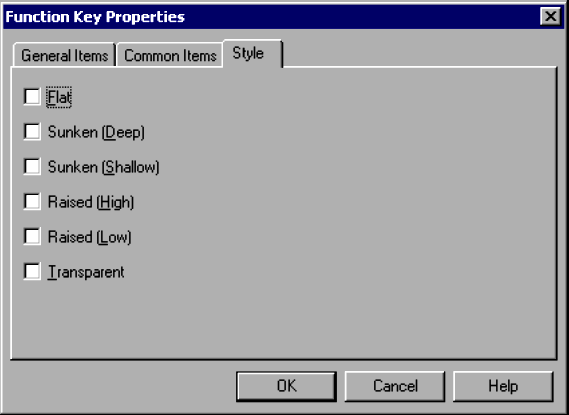

The Function Key Properties dialog box has three tabs: General Items, Common Items, and Style. Click the Style tab to display the Function Key Properties (Style) page.
![[Figure]](GRAPHICS/ZU040427.GIF)
- Organization of this subsection
(1) Components
In the Function Key Properties (Style) dialog box, you can set the following items for a function key control.
- Flat
-
Makes the control two-dimensional.
- Sunken (Deep)
-
Makes the control appear deeply inset.
- Sunken (Shallow)
-
Makes the control appear slightly inset.
- Raised (High)
-
Makes the control appear prominently raised.
- Raised (Low)
-
Makes the control appear slightly raised.
- Transparent
-
Makes the control transparent.
(2) Operations
-
Click OK to apply the settings and close the Function Key Properties dialog box.
-
Click Cancel to close the dialog box without applying the settings.
