4.4.25 Function Key Properties (General Items) dialog box
The Function Key Properties dialog box appears when you select and double-click a function key control in the menu form view of the Script Menu Editor window.

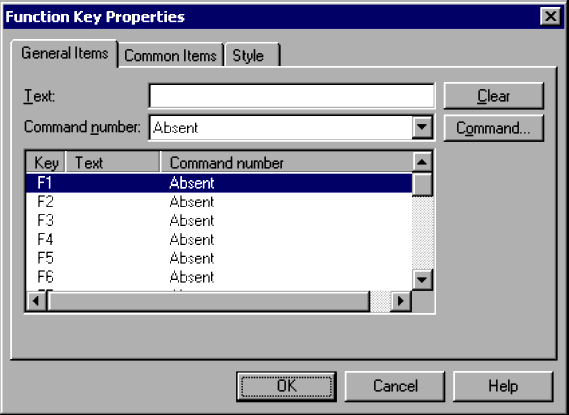

The Function Key Properties dialog box has three tabs: General Items, Common Items, and Style. Click the General Items tab to display the Function Key Properties (General Items) page.
![[Figure]](GRAPHICS/ZU040425.GIF)
- Organization of this subsection
(1) Components
In the Function Key Properties (General Items) dialog box, you can set the following items for a function key control.
- Text
-
Specify the text to be displayed for the function key selected in the list.
- Command number
-
Specify the number of the command to be executed when the user clicks the function key selected in the list.
- Clear
-
Click to clear the data of the function key selected in the list.
- Command
-
Click to set the properties of the command corresponding to the function key selected in the list.
(2) Operations
-
Click OK to apply the settings and close the Function Key Properties dialog box.
-
Click Cancel to close the dialog box without applying the settings.
