4.4.14 Button Properties (Style) dialog box

The Button Properties dialog box appears when you select and double-click a button control in the menu form view of the Script Menu Editor window.

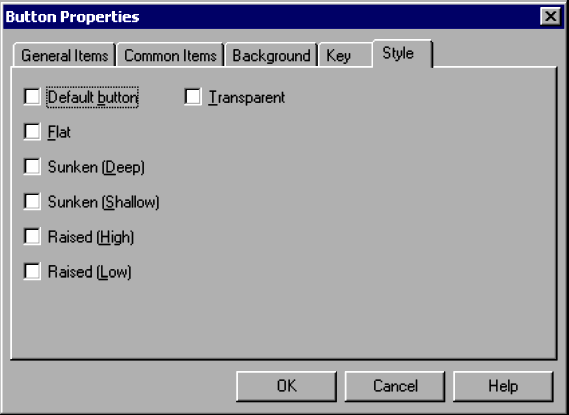

The Button Properties dialog box has five tabs: General Items, Common Items, Background, Key, and Style. Click the Style tab to display the Button Properties (Style) page.

[Figure]

Organization of this subsection

(1) Components
(2) Operations

(1) Components

In the Button Properties (Style) dialog box, you can set the following style properties for a button control.

Default button: Designates the button as the default button. Only one button on a menu form can be the default button.
Flat: Makes the button two-dimensional.
Sunken (Deep): Makes the button appear deeply inset.
Sunken (Shallow): Makes the button appear slightly inset.
Raised (High): Makes the button appear prominently raised.
Raised (Low): Makes the button appear slightly raised.
Transparent: Makes the button transparent.

To Page Top

(2) Operations

Click OK to apply the settings and close the Button Properties dialog box.
Click Cancel to close the dialog box without applying the settings.
