4.4.10 Button Properties (General Items) dialog box

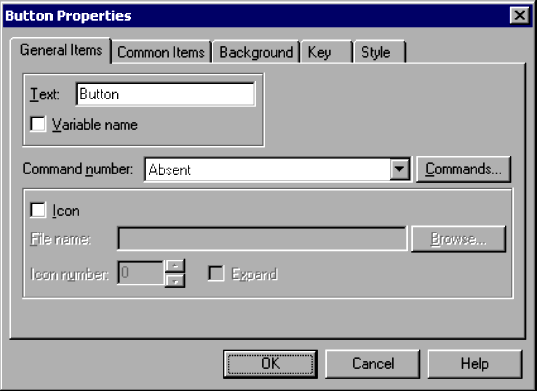

The Button Properties dialog box appears when you select and double-click a button control in the menu form view of the Script Menu Editor window.
The Button Properties dialog box has five tabs: General Items, Common Items, Background, Key, and Style. Click the General Items tab to display the Button Properties (General Items) page.
![[Figure]](GRAPHICS/ZU040410.GIF)
- Organization of this subsection
(1) Components
In the Button Properties (General Items) dialog box, you can set the following items for a button control.
- Text
-
Specify the text to be displayed for the button. You can specify character strings or a variable name that stores character strings.
You cannot specify an array variable for a variable name.
- Variable name
-
Select this check box if you want to specify a variable in Text.
- Command number
-
Specify the number of the command to be executed when the user clicks this button.
- Command
-
Click to display the Set Command Properties dialog box and set the command properties.
- Icon
-
Select this check box to display an icon on the button.
- File name
-
Enter the icon file name to display on the button. You can set a file name only if you select Icon.
- Browse
-
Click to specify an icon file in the Open File dialog box. This button is available only if you select Icon.
- Icon number
-
Specify the icon in the icon file specified in File name, using a number beginning from zero. You can set a number only if you select Icon.
- Expand
-
Select this check box to display a double-size icon on the button. This check box is available only if you select Icon.
(2) Operations
-
Click OK to apply the settings and close the Button Properties dialog box.
-
Click Cancel to close the dialog box without applying the settings.
