4.4.5 Menu Form Properties (Wallpaper) dialog box

The Menu Form Properties dialog box appears when you select and double-click a menu form in the menu form view of the Script Menu Editor window.

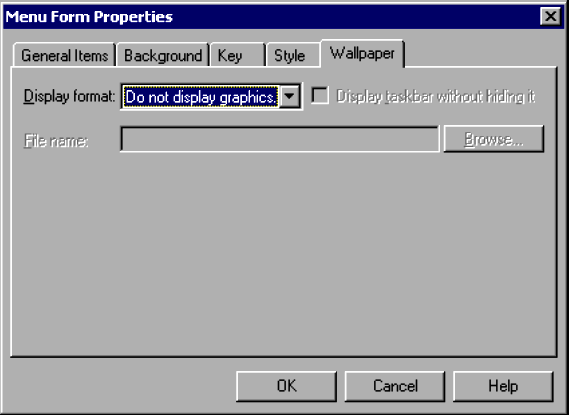

The Menu Form Properties dialog box has five tabs: General Items, Background, Key, Style, and Wallpaper. Click the Wallpaper tab to display the Menu Form Properties (Wallpaper) page.

[Figure]

Organization of this subsection

(1) Components

In the Menu Form Properties (Wallpaper) dialog box, you can set the following items for the wallpaper pasted on the menu form you selected.

Display format

From the drop-down list, select how to display the wallpaper image.

Do not display graphics is set by default.

Display taskbar without hiding it

Displays the image as wallpaper, leaving the task bar visible.

File name

Enter the file name of the image to display as wallpaper.

(2) Operations
