4.4.2 Menu Form Properties (Background) dialog box

The Menu Form Properties dialog box appears when you select and double-click a menu form in the menu form view of the Script Menu Editor window.

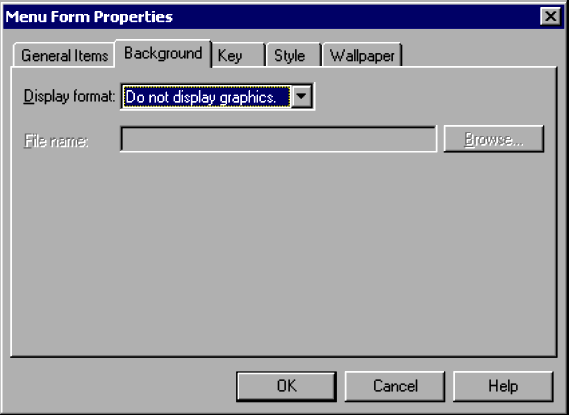

The Menu Form Properties dialog box has five tabs: General Items, Background, Key, Style, and Wallpaper. Click the Background tab to display the Menu Form Properties (Background) page.

[Figure]

Organization of this subsection

(1) Components

In the Menu Form Properties (Background) dialog box, you can set the following items for the background of the menu form you selected.

Display format

From the drop-down list, select how to display the background image.

Do not display graphics is set by default.

File name

Enter the file name of the image to display in the background.

This field is disabled when Do not display graphics is selected in Display format.

Browse

Click to select an image file.

This button is disabled when Do not display graphics is selected in Display format.

(2) Operations
