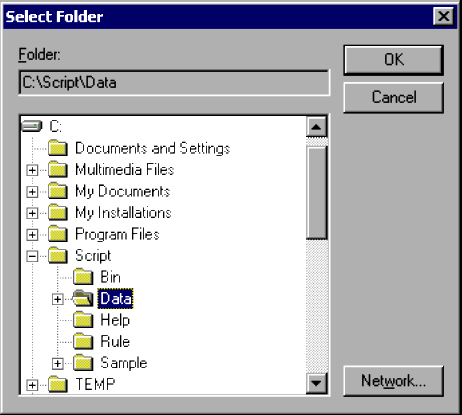

4.1.29 Select Folder dialog box
The Select Folder dialog box appears when you choose the Select button to select a folder in a dialog box.
- Organization of this subsection
(1) Components
- Folder
-
The name of the folder you select appears at the top. If the folder name exceeds the view area, the last portion of the name is shown.
The drive names and folder names appear in a tree structure at the bottom of the Folder area.
- Network
-
Displays the Assign Network Drives dialog box.
(2) Operations
-
Click OK to apply information for the selected folder.
-
Click Cancel to close the dialog box without applying the selected folder information.
