4.1.17 Set Execution Environment (User Trace Information) dialog box

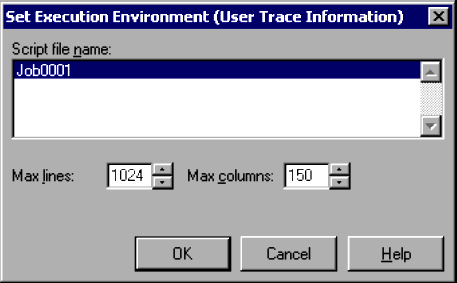

The Set Execution Environment (User Trace Information) dialog box appears when you select one or more icons in the Script Manager window and choose File, Set Execution Environment, User Trace Information.
![[Figure]](GRAPHICS/ZU040117.GIF)
- Organization of this subsection
(1) Components
In the Set Execution Environment (User Trace Information) dialog box, you can set the following items for the script file(s) you selected.
- Script file name
-
Lists the name of the files (icons) that you selected in the Script Manager window. If you selected multiple icons, the file names are sorted in ascending order.
- Max lines
-
Specify the maximum number of lines to output from the user trace file. Set a number in the range 100 to 9,999.
- Max columns
-
Specify the maximum number of columns to output from the user trace file. Set a number in the range 128 to 1,024.
(2) Operations
-
Set information about the execution environment as required.
-
Click OK to update the execution environment file with the entered setting.
-
Click Cancel to close the dialog box without updating the environment execution file.
(3) Processing
-
When you select multiple icons, items are set by default to the settings for the first file listed in Script file name. If you select one of the listed files, the environment settings for that file apply to all the files.
