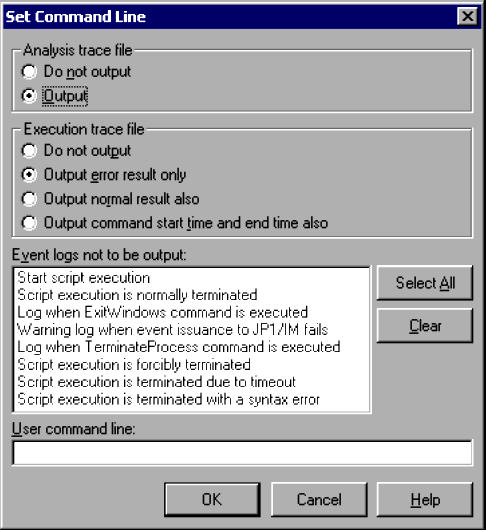

4.1.12 Set Command Line dialog box

(1) Components

Analysis trace file

Choose whether to output an analysis trace file. Output is set by default.

The setting you choose here is set in the form^# /SPALV(n) in the command line in the Set Execution Environment (Start Information) dialog box and Set Execution Environment (Command Line) dialog box.

Execution trace file

Choose whether to output an execution trace file and the output level. Output error result only is set by default.

The setting you choose here is set in the form^# /SPXLV(n) in the command line in the Set Execution Environment (Start Information) dialog box and Set Execution Environment (Command Line) dialog box.

If you select Output normal result also or Output command start time and end time also, the execution performance of script files will be degraded because the amount of output information will increase.

Event logs not to be output

Lists event logs for which you can disable run-time output.

Click Select All to select all the event logs. Click Clear to clear the selection.

By default, the event logs are not all selected.

The settings you choose here are set in the form /NOEVLOG or /NOEVLOG(n, n, ...) in the command line in the Set Execution Environment (Start Information) dialog box and Set Execution Environment (Command Line) dialog box.

User command line^#

Enter a user-specified command line.

#

For details about the command format, see 6.2.2 Command line parameters.

To Page Top

(2) Operations

• Set command line information as required.

• Click OK to enter the settings in the command line displayed in the Set Execution Environment (Start Information) dialog box.

• Click Cancel to close the dialog box without changing the command line contents.

To Page Top

(3) Processing

• The Event logs not to be output list contains run-time event logs other than error logs.
