3.6.3 Creating a menu form

The following describes how to create a menu form using Script Menu Editor. A menu form is a window displayed on the screen when the user executes a created script file. On a menu form, you can arrange buttons, list boxes, and other graphics. These are called controls.

To create a menu form:

1. Choose Edit, Create Menu Form.

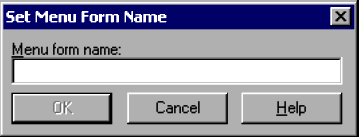

   The Set Menu Form Name dialog box appears.



   For details about using this dialog box, see 4.4.38 Set Menu Form Name dialog box.

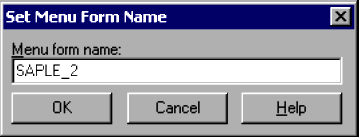

2. Enter the menu form name.



3. Click the OK button.

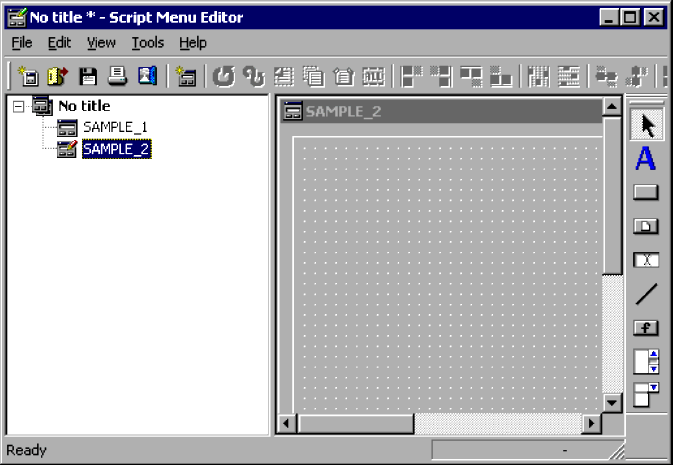

   A new menu form appears in the menu form view area, and the name you entered at step 2 adds in the menu form tree view.
