3.3.4 Setting the line length and indent size

In the Script Easy Input window, click the Options button to display the Options dialog box.

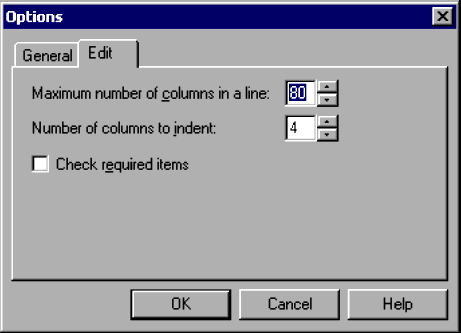

This dialog box has two pages: General and Edit. Click the Edit tab to display the Options (Edit) dialog box.

[Figure]

Organization of this subsection

(1) Items

Maximum number of columns in a line

Specify the maximum number of columns per line in the edited contents pasted to Script Editor or the clipboard.

Specify a number in the range from 64 to 999. 80 is set by default.

Number of columns to indent

Specify the indent size of the edited contents pasted to the clipboard.

Specify a number in the range from 0 to 16. 4 is set by default.

Check required items

Select this check box to check whether data is correctly entered in the mandatory arguments of the commands you enter.

(2) Operations
