Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.2.12 Adding a variable to the Watch window

To add a specified variable to the Watch window:

  1. In monitoring mode, choose Monitoring, Add to Watch Window.

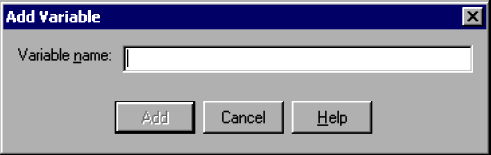

    The Add Variable dialog box appears.

    [Figure]

    For details about using this dialog box, see 4.2.10 Add Variable dialog box.

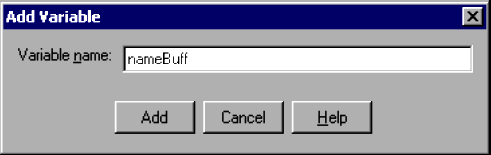

  2. Enter the name of the variable you want to add.

    Up to 99 characters can be specified. You cannot enter variable names over 99 characters.

    [Figure]

  3. Click the Add button.

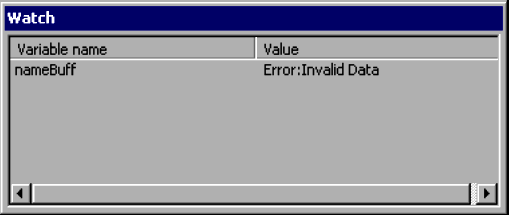

    The variable name you entered is added to the Watch window.

    [Figure]

Notes
  • If you select a character string in the client area of the Script Editor window while in monitoring mode and then choose Monitoring, Add to Watch Window, the selected string appears as a variable name in the Watch window.

  • Click the Cancel button to close the Add Variable dialog box without adding a variable.

  • To delete an added variable from the Watch window, right-click on the variable name and choose Delete Variable.
