Hitachi

JP1 Version 11 JP1/Script Description and Reference (For Windows Systems)


3.2.3 Setting and canceling comment lines

You can set or cancel a comment line.

To set a comment line:

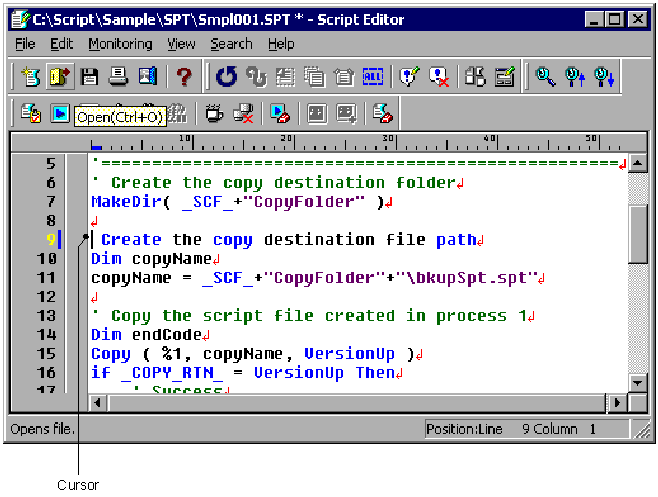

  1. Move the cursor to the line you want to be a comment.

    [Figure]

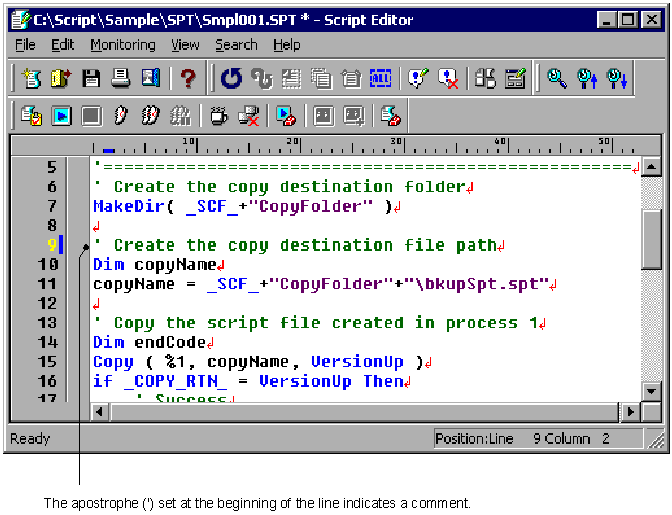

  2. Choose Edit, Set Comment.

    The line where the cursor is located becomes a comment.

    [Figure]

To make a comment line into a normal line:

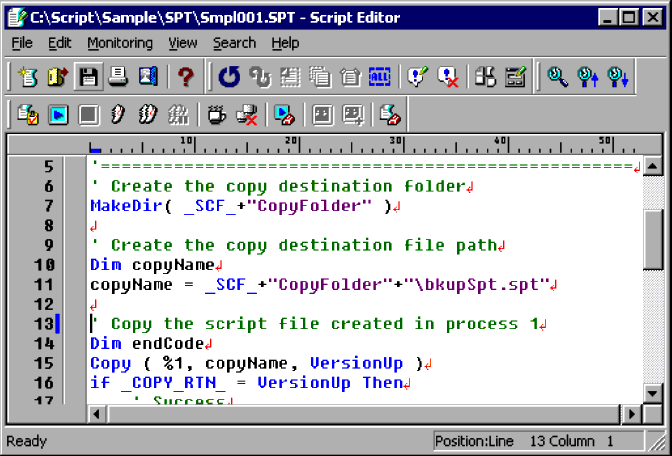

  1. Move the cursor to the line from which you want to clear the comment setting.

    [Figure]

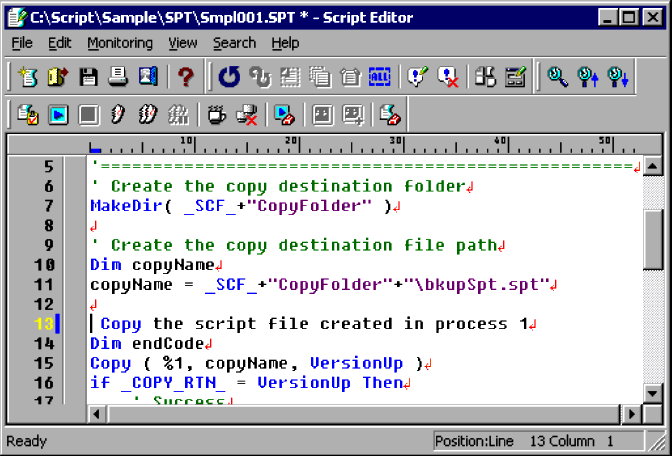

  2. Choose Edit, Cancel Comment.

    The comment setting is removed from the line where the cursor is located.

    [Figure]

Notes
  • If you select multiple lines, all the selected lines are set or canceled as comments.

  • In monitoring mode, the Set Comment and Cancel Comment commands are disabled and you cannot choose them from the Edit menu.
