1.6 JP1/Script operating procedure

JP1/Script operations can be divided broadly into two types, operations in the Manager window and operations in the Trace Viewer window (and View Trace File window).

You use the Manager window to perform a series of operations for completing a script. When you actually code the script, you must start Editor (or a user-specified editor) from the Manager window.

You use the Trace Viewer window to manipulate the trace file that is created by the script.

This section describes the procedure up to the point of completion of a script file in the Manager window.

To create a script file, start Editor from Manager. You can use the syntax checker to perform lexical and grammatical analysis of the script.

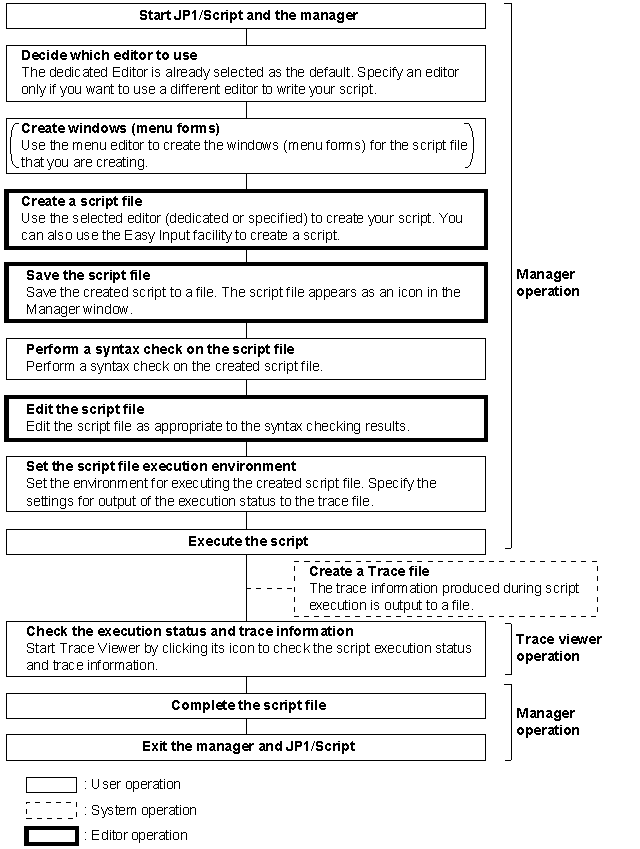

Figure 1‒7: JP1/Script operating procedure
