1.5.1 System configuration linked with JP1/AJS

This subsection describes the system configuration for executing and managing jobs automatically by linking JP1/Script with JP1/AJS (JP1/AJS2 or JP1/AJS3). JP1/AJS enables you to define and execute as a job a script file created by JP1/Script.

Figure 1-2 shows how to link JP1/Script with JP1/AJS to achieve automatic execution and management of jobs.

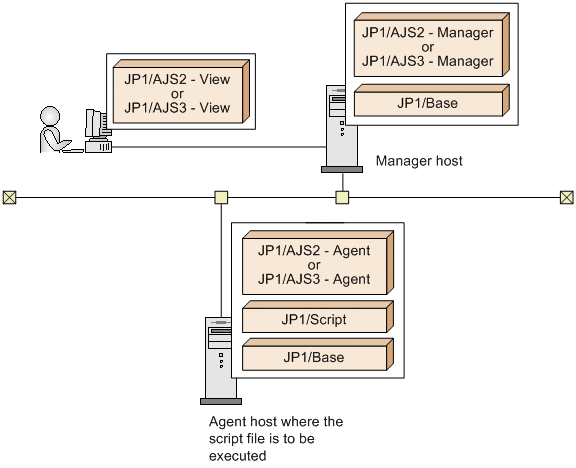

Figure 1‒2: Linking JP1/Script with JP1/AJS to achieve job execution and management

If you create in the Manager host's job definition a job for issuing a request to execute a script file created by an agent host, the agent host executes the script file at the specified execution time.

JP1/AJS does not support execution of a program that displays GUI and then waits for entry of the job. JP1/Script enables you to use a script file to start a program with GUI. For details, see 8.10.2 NetExec (call an executable file on the local PC or remote PC).
