A.10 Monitor dialog box

In the Monitor dialog box, you can view lines showing the relations between units under the unit selected in the Dashboard screen or List screen. You can also perform operations such as Change Hold Attribute, Interrupt, and Rerun.

The following figure shows the Monitor dialog box.

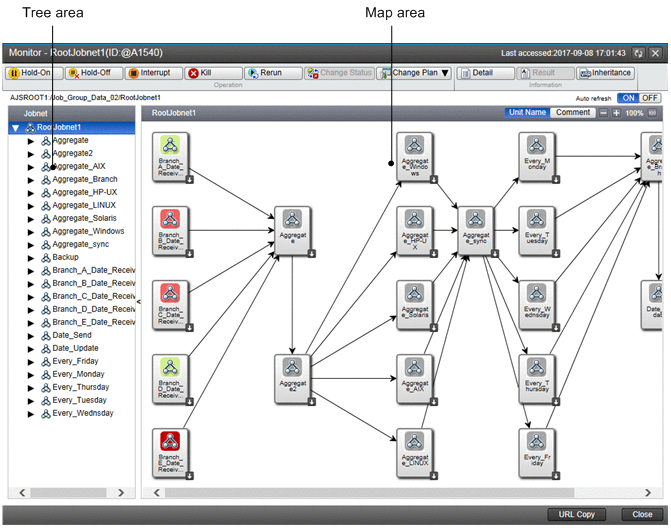

Figure A‒9: Monitor dialog box

The Monitor dialog box consists of two main areas:

Tree area: Defined jobnets are displayed in a tree. If you select a jobnet in the tree area, the map area displays the units under the selected jobnet.
Map area: Units under the jobnet selected in the tree area are displayed. In the tool tip of the icon for a unit, you can check the unit name and the comment defined for the unit.

If automatic refresh is enabled, the Monitor dialog box is refreshed every 5 minutes, starting from the time that automatic refresh is enabled.

You can manipulate a unit by selecting it and clicking the buttons at the top of the dialog box. The following table describes the operations that can be performed by using these buttons.

Table A‒5: Operations that can be performed by clicking the buttons in the Monitor dialog box
No.	Button	Operation
1	Hold-On	Holds the selected unit.
2	Hold-Off	Releases the selected unit from the hold.
3	Interrupt	Interrupts execution of a jobnet.
4	Kill	Forcibly terminates a unit that is running.
5	Rerun	Displays the Rerun dialog box, allowing you to rerun a unit.
6	Change Status	Displays the Change Job Status dialog box, allowing you to change the status of a job.
7	Change Plan	Displays the following menu commands, which allow you to perform operations such as temporarily changing the selected execution schedule and releasing the execution schedule from the temporary changes: Change Time Displays the Change Time dialog box, in which you can change the scheduled start date and time of the execution schedule of the selected unit. Execute Immediately Displays the Execute Immediately dialog box, in which you can immediately execute the execution schedule of a selected unit. Execution Prohibited Cancels execution of the execution schedule of the selected unit. Release Change Releases the execution schedule of the selected unit from temporary changes.
8	Detail	Displays the Detailed Information dialog box, allowing you to check the detailed information about a unit.
9	Result	Displays the Result dialog box, allowing you to check the execution result of a unit.
10	Inheritance	Displays the Inherit Result dialog box, allowing you to check the inheritance result of a unit.

You can switch the information shown under the icon for each unit displayed in the map area between the unit name and the comments defined for the unit. Clicking the Unit name button at the top of the map area displays unit names. Clicking the Comment button at the top of the map area displays the comments defined for the units. If no comment is defined for a unit, nothing is displayed under the icon for the unit.

You can copy the URL of the Monitor screen for a specific unit. To do this, select the unit in the Monitor dialog box, and then click the URL Copy button at the bottom of the dialog box. For details about the Monitor screen, see A.11 Monitor screen. Note that to use the obtained URL to open the Monitor screen, you must perform authentication by using the JP1/AJS3 - Web Console login screen.

The function that copies the URL of the Monitor screen is useful when you want to inform other users by email of the URL of the Monitor screen for a monitored unit.

Cautionary note: If a full unit name contains many multibyte characters, the URL you obtain might be very long. Note that Internet Explorer might not be able to open the Monitor screen if the URL is too long. If Internet Explorer cannot open the Monitor screen, try using Firefox.
