A.6 List screen

In the List screen, you can perform tasks such as monitoring units, setting hold attributes, and registering units for execution. Clicking the Dashboard tab displays the Dashboard screen.

The following figure shows the List screen.

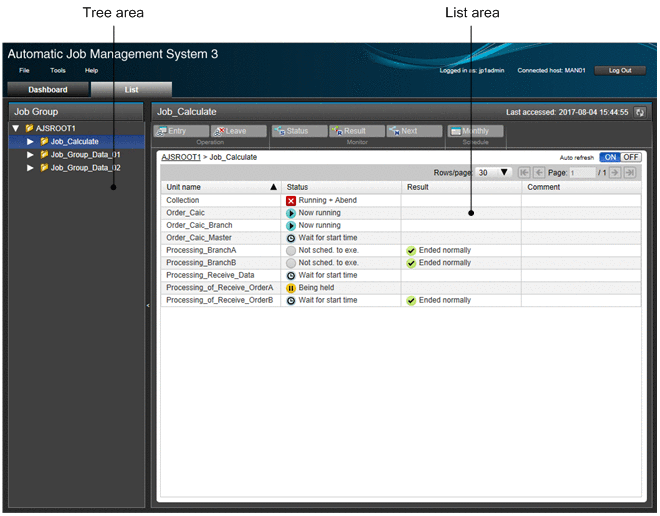

Figure A‒5: List screen

If automatic refresh is enabled, the List screen is refreshed every 10 minutes, starting from the time that automatic refresh is enabled.

The List screen consists of two main areas:

Tree area

This area displays the units the logged-in JP1 user has permission to reference in tree format. When you select a job group in the tree area, the units under the selected job group appear in the list area.

List area

This area displays the units under the job group selected in the tree area.

You can manipulate a unit by selecting it in the list and clicking the buttons above the list. The following table describes the operations that can be performed by using these buttons.

Table A‒3: Operations that can be performed by clicking the buttons in the List screen

No.	Button	Operation
1	Entry	Displays the Register for Execution dialog box, allowing you to register the selected unit for execution.
2	Leave	Displays the Cancel Registration dialog box, allowing you to unregister the selected unit for execution.
3	Status	Displays the Monitor dialog box, allowing you to check the current status of the selected unit.
4	Result	Displays the Monitor dialog box, allowing you to check the execution result of the selected unit.
5	Next	Displays the Monitor dialog box, allowing you to check when the selected unit will be executed next.
6	Monthly	Displays the Monthly Schedule screen.
