A.5 Dashboard screen

In the Dashboard screen, you can perform tasks such as monitoring units and setting hold attributes. Clicking the List tab displays the List screen.

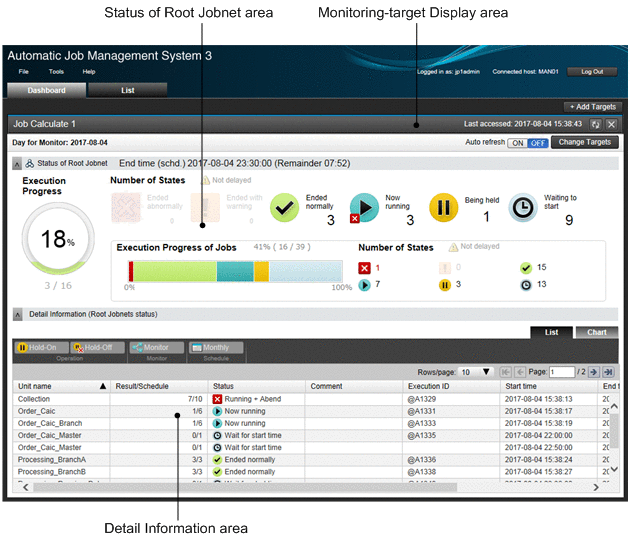

The following figure shows the Dashboard screen.

Figure A‒2: Dashboard screen

If automatic refresh is enabled, the Dashboard screen is refreshed every 10 minutes, starting from the time that automatic refresh is enabled.

The Dashboard screen displays as many monitoring-target display areas as the number of monitoring targets you have specified. You can set a monitoring target in the Set Monitoring Targets dialog box, which is opened by clicking the Add Targets button. You can set a maximum of five monitoring targets by default. For details about the Set Monitoring Targets dialog box, see A.8 Set Monitoring Targets dialog box.

Monitoring-target display area consists of two main areas:

Status of Root Jobnet area

In this area, you can check the number of monitored units and the execution progress and status of each monitored unit on the day specified for Day for Monitor in the Set Monitoring Targets dialog box.

The Status of Root Jobnet area displays the following two types of information:

Execution progress and status of each monitored root jobnet

When you click one of the root jobnet status icons, information about only the selected root jobnet is displayed in the Detail Information area.
Execution progress and status of each monitored unit (jobnets, including root jobnets, and jobs)

When you click one of the unit status icons, information about only the selected unit is displayed in the Detail Information area.

Detail Information area

In this area, you can view the execution status of monitored units. You can also change the hold attributes of monitored units. The start date and time and end date and time are values calculated from an execution simulation^#.

#: If a jobnet has never been executed, its execution is simulated with the time required for execution set to 1,200 seconds.

In this area, you can open the List tab or the Chart tab. The List tab displays execution statuses in a list format, and the Chart tab displays an execution schedule.

List tab

Displays the status, start time, and other information about each unit in a list format.

If you click one of the root jobnet status icons or unit status icons in the Status of Root Jobnet area, information about only the selected unit is displayed in this tab.

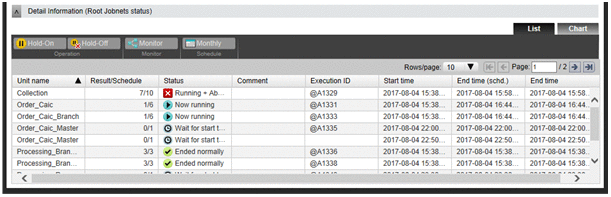

The following figure shows the List tab.

Figure A‒3: List tab

You can manipulate a unit by selecting it in the list and clicking one of the buttons above the list. The following table describes the operations that can be performed by using these buttons.

Table A‒1: Operations that can be performed with the buttons on the List tab
No.	Button	Operation
1	Hold-On	Holds the selected unit.
2	Hold-Off	Releases the selected unit from the hold.
3	Monitor	Displays the Monitor dialog box.
4	Monthly	Displays the Monthly Schedule screen.

Chart tab

Displays the execution schedule for the root jobnets.

If you click one of the root jobnet status icons in the Status of Root Jobnet area, information about only the selected root jobnet is displayed in this tab.

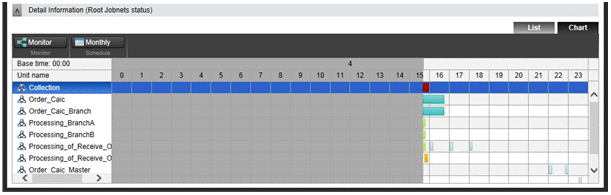

The following figure shows the Chart tab.

Figure A‒4: Chart tab

You can manipulate a unit by selecting it in the list and clicking the buttons above the list. The following table describes the operations that can be performed by using these buttons.

Table A‒2: Operations that can be performed with the buttons on the Chart tab
No.	Button	Operation
1	Monitor	Displays the Monitor dialog box. If the selected unit has multiple generations whose status can be checked, the Generation Selection dialog box (for selecting the generation to be displayed in the Monitor dialog box) appears.
2	Monthly	Displays the Monthly Schedule screen to enable you to check the unit execution schedule on a monthly basis.

Cautionary notes

If the Chart tab is displayed in the Detail Information area, you cannot select a unit status icon.
If you open the Chart tab when the List tab displays information that was filtered by selecting a unit status icon, selection of the unit status icon is canceled.

Supplementary note

By editing the environment settings file (ajs3web.conf), you can change the maximum number of monitoring targets that can be set. For details about the environment settings file (ajs3web.conf) in Windows, see 3.4.3 Details on the settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide. For details about the environment settings file (ajs3web.conf) in Linux, see 13.3.3 Details on settings in the environment-settings file (ajs3web.conf) in the JP1/Automatic Job Management System 3 Configuration Guide.
