Host Physical Disk Status (PI_HPDI)
- Organization of this page
Function
This record stores performance data on a physical disk of a physical server over a unit of time. This record is a multi-instance record.

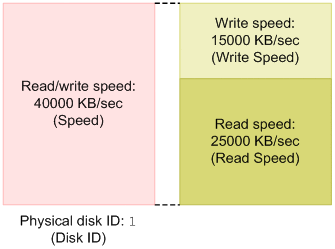

In this record, you can collect performance data such as data read/write speed on a physical disk of a physical server. For the data read/write speed, you can collect further details, that is, data read speed and data write speed. The figure below shows an example of data that can be collected into this record.
|
|
![[Figure]](GRAPHICS/ZU050007.GIF)
- Note:
-
Information cannot be collected if an attempt to connect to the monitored physical server fails.
Default values and values that can be changed
|
Item |
Default value |
Can it be changed? |
|---|---|---|
|
Collection Interval |
300 |
Yes |
|
Collection Offset |
0 |
Yes |
|
Log |
No |
Yes |
|
LOGIF |
Blank |
Yes |
|
Over 10 Sec Collection Time |
No |
No |
ODBC key field
PI_HPDI_DISK_ID
Lifetime
None
Record size
-
Fixed portion: 937 bytes
-
Variable portion: 973 bytes
Field
|
PFM - View name (PFM - Manager name) |
Explanation |
Summary |
Grouping |
Format |
Delta |
When not collected |
Unsup-ported |
|---|---|---|---|---|---|---|---|
|
Record Type (INPUT_RECORD_TYPE) |
The record name. This is always HPDI. |
COPY |
COPY |
char (8) |
No |
-- |
Docker environment |
|
Record Time (RECORD_TIME) |
The time when the record was created. |
COPY |
COPY |
time_t |
No |
-- |
Docker environment |
|
Interval (INTERVAL) |
Interval during which the information is collected. [Units: seconds] |
COPY |
FIXED |
ulong |
No |
-- |
Docker environment |
|
VA DeviceID (VADEVICEID) |
The device ID of a monitored host. |
COPY |
COPY |
string(256) |
No |
-- |
Docker environment |
|
Disk ID (DISK_ID) |
Disk ID. ID of the physical disk connected to the physical server. |
COPY |
FIXED |
string (257) |
No |
No |
Docker environment |
|
Sampling Time (SAMPLING_TIME) |
Sampling time. The time when the performance information is collected on the host machine. Displayed in the following format: yyyy-mm-ddThh:mm[±hh:mm]#1 |
COPY |
FIXED |
string (32) |
No |
Blank |
Docker environment |
|
Speed (SPEED)#2 |
Data transfer speed. Speed of reads from or writes to the physical disk, made by the host machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
logical partitioning feature Docker environment |
|
Read Speed (READ_SPEED)#2 |
Reading data transfer speed. Speed of reads from the physical disk, made by the host machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
logical partitioning feature Docker environment |
|
Write Speed (WRITE_SPEED)#2 |
Writing data transfer speed. Speed of writes to the physical disk, made by the host machine. [Units: KBps] |
HILO |
AVG |
double |
No |
0 |
logical partitioning feature Docker environment |
|
Requests (REQUESTS)#2 |
Number of requests.
|
HILO |
ADD |
double |
No |
VMware: 0 Hyper-V: 0 KVM: 0 logical partitioning feature: -1 |
Docker environment |
|
Read Requests (READ_REQUESTS)#2 |
Number of read requests. Number of times that read requests, made by the host machine to the physical disk, are processed. |
HILO |
ADD |
double |
No |
0 |
logical partitioning feature Docker environment |
|
Write Requests (WRITE_REQUESTS)#2 |
Number of write requests. Number of times that write requests, made by the host machine to the physical disk, are processed. |
HILO |
ADD |
double |
No |
0 |
logical partitioning feature Docker environment |
|
Commands (COMMANDS) |
Number of issued disk commands. Number of commands issued by the host machine to the physical disk. |
HILO |
ADD |
double |
No |
0 |
Hyper-V KVM logical partitioning feature Docker environment |
|
Abort Commands (ABORT_COMMANDS) |
Number of aborted disk commands. Number of aborted commands made by the host machine to the physical disk. |
HILO |
ADD |
double |
No |
0 |
Hyper-V KVM logical partitioning feature Docker environment |
|
Abort Commands % (ABORT_COMMANDS_PERCENT) |
Aborted disk command rate. Percentage of all commands, made by the host machine to a physical disk, that are aborted. |
HILO |
AVG |
double |
No |
0 |
Hyper-V KVM logical partitioning feature Docker environment |
|
Bus Resets (BUS_RESETS) |
Number of bus resets. Number of times the bus was reset for a disk on the host machine. |
HILO |
ADD |
double |
No |
0 |
Hyper-V KVM logical partitioning feature Docker environment |
|
Device Latency (DEVICE_LATENCY) |
Average amount of physical device latency. Average amount of time to complete a command from the physical device. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Device Read Latency (DEVICE_READ_LATENCY) |
Average amount of physical device read latency. Average amount of time to complete read from the physical device. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Device Write Latency (DEVICE_WRITE_LATENCY) |
Average amount of physical device write latency. Average amount of time to complete write from the physical device. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Kernel Latency (KERNEL_LATENCY) |
Average Amount of VMkernel processing latency. Average amount of spent by VMkernel processing each command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Kernel Read Latency (KERNEL_READ_LATENCY) |
Average amount of VMkernel processing read latency. Average amount of spent by VMkernel processing each read command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Kernel Write Latency (KERNEL_WRITE_LATENCY) |
Average amount of VMkernel processing write latency. Average amount of spent by VMkernel processing each write command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Queue Latency (QUEUE_LATENCY) |
Average amount of time to VMkernel queue latency. Average amount of spent in the VMkernel queue command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Queue Read Latency (QUEUE_READ_LATENCY) |
Average amount of time to VMkernel queue read latency. Average amount of spent in the VMkernel queue read command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
|
Queue Write Latency (QUEUE_WRITE_LATENCY) |
Average amount of time to VMkernel queue write latency. Average amount of spent in the VMkernel queue write command. [Unit: milliseconds] |
HILO |
AVG |
double |
No |
0 |
VMware 3.0.x Hyper-V KVM logical partitioning feature Docker environment |
- #1
-
The value used in [±hh:mm] varies depending on the time zone of the monitored host. For example, if the monitored virtual environment is operating according to JST, +09:00 is displayed. If the monitored virtual environment is operating according to UTC, Z is displayed.
- #2
-
For Hyper-V only, this field requires performance data to be collected at least twice.
