Host Network Status (PI_HNI)

Function

This record stores performance data on a physical server's physical NIC over a unit of time. This record is a multi-instance record.

In this record, you can collect performance data such as data send/receive speed. The data send/receive speed can be divided into data receive speed and data send speed. The figure below shows an example of data that can be collected in this record.

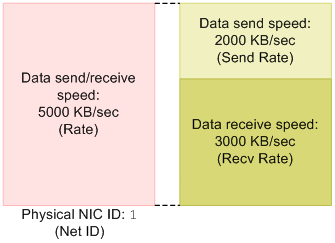

Figure 5‒4: Example of collected data

Note:

• Information cannot be collected if an attempt to connect to the monitored physical server fails.

• For Hyper-V, specific symbols included in a network identifier are converted to other symbols when the network identifier is stored in the Net ID field. The conversion rules are as follows:

  Before conversion	After conversion
  / and \	-
  # and *	_
  (	[
  )	]

To Page Top

Default values and values that can be changed

Item	Default value	Can it be changed?
Collection Interval	300	Yes
Collection Offset	0	Yes
Log	No	Yes
LOGIF	Blank	Yes
Over 10 Sec Collection Time	No	No

To Page Top

ODBC key field

PI_HNI_NET_ID

To Page Top

Lifetime

None

To Page Top

Record size

• Fixed portion: 937 bytes

• Variable portion: 397 bytes

To Page Top

Fields

PFM - View name (PFM - Manager name)	Explanation	Summary	Grouping	Format	Delta	When not collected	Unsup-ported
Record Type (INPUT_RECORD_TYPE)	The record name. This is always HNI.	COPY	COPY	char (8)	No	--	Docker environment
Record Time (RECORD_TIME)	The time when the record was created.	COPY	COPY	time_t	No	--	Docker environment
Interval (INTERVAL)	Interval during which the information is collected. [Units: seconds]	COPY	FIXED	ulong	No	--	Docker environment
VA DeviceID (VADEVICEID)	The device ID of a monitored host.	COPY	COPY	string(256)	No	--	Docker environment
Net ID (NET_ID)	Network ID.	COPY	FIXED	string (257)	No	No	Docker environment
Sampling Time (SAMPLING_TIME)	Sampling time. The time when the performance information is collected on the host machine. Displayed in the following format: yyyy-mm-ddThh:mm[±hh:mm]#1	COPY	FIXED	string (32)	No	Blank	Docker environment
Rate (RATE)#2	Speed of transmission to and from the network by the host machine. [Units: KBps] For logical partitioning feature, when the associated NIC is running in dedicated mode, the value is always set to -1 and cannot be obtained.	HILO	AVG	double	No	VMware: 0 Hyper-V: 0 KVM: 0 logical partitioning feature: -1	Docker environment
Send Rate (SEND_RATE)#2	Speed of sending to the network by the host machine. [Units: KBps] For logical partitioning feature, when the associated NIC is running in dedicated mode, the value is always set to -1 and cannot be obtained.	HILO	AVG	double	No	VMware: 0 Hyper-V: 0 KVM: 0 logical partitioning feature: -1	Docker environment
Recv Rate (RECV_RATE)#2	Speed of receiving from the network by the host machine. [Units: KBps] For logical partitioning feature, when the associated NIC is running in dedicated mode, the value is always set to -1 and cannot be obtained.	HILO	AVG	double	No	VMware: 0 Hyper-V: 0 KVM: 0 logical partitioning feature: -1	Docker environment
