JP1 Version 11 JP1/Performance Management - Remote Monitor for Platform Description, User's Guide and Reference

5.6.1 Flow of uninstallation and unsetup in a cluster system (for UNIX)

The following figure shows the procedure for uninstalling and canceling the setup of a PFM - RM for Platform that is running in a cluster system.

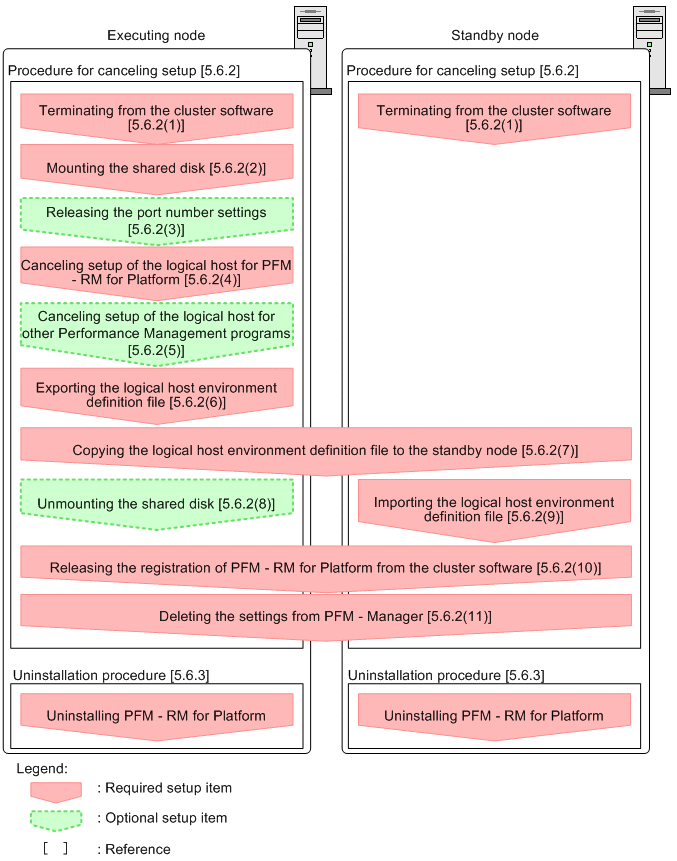

Figure 5‒8: Procedure for uninstalling and canceling the setup of a PFM - RM for Platform in a cluster system (for UNIX)
