5.2.1 Failover when an error occurs at the PFM - RM host

The following figure shows the processing when failover occurs at the host PFM - RM host.

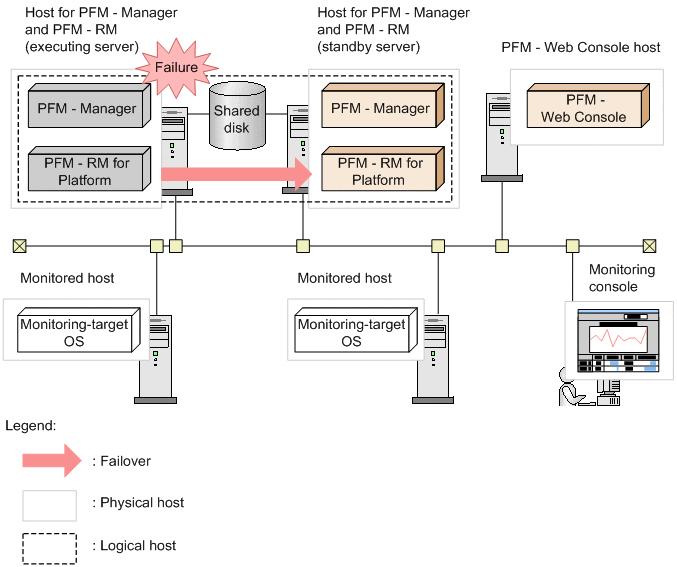

Figure 5‒3: Processing when failover occurs at the PFM - RM host (when PFM - RM for Platform is installed on the PFM - Manager host)

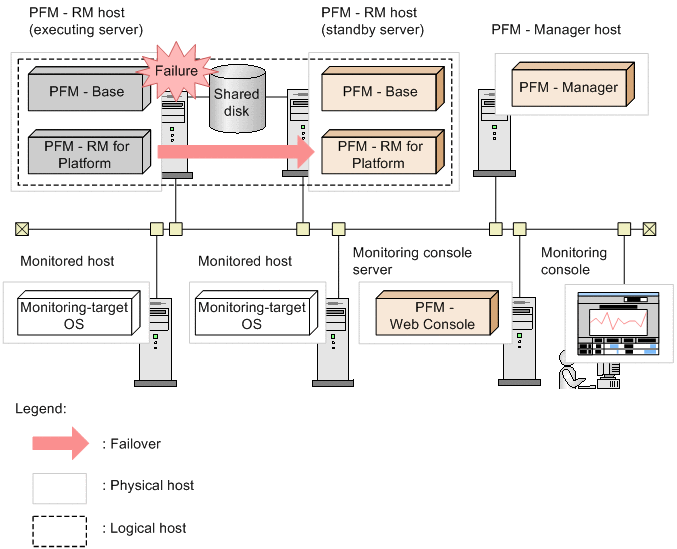

Figure 5‒4: Processing when failover occurs at the PFM - RM host (when PFM - RM for Platform is installed on a different host from the PFM - Manager host)

If PFM - Web Console is used while PFM - RM for Platform is engaged in failover processing, the message There was no answer(-6) is displayed. If this message is displayed, wait until failover processing is completed.

Once failover is completed at PFM - RM for Platform, an attempt to use PFM - Web Console connects you to the PFM - RM for Platform that has started at the target node, so that you can perform operations.
