1.3 System configuration of JP1/IM - EG for NNMi
You use JP1/IM - EG for NNMi by linking it with the JP1/IM system.
The JP1/IM system consists of a manager that performs integrated management of systems, agents that run on the monitored servers, and a viewer from which monitoring and operations are performed.

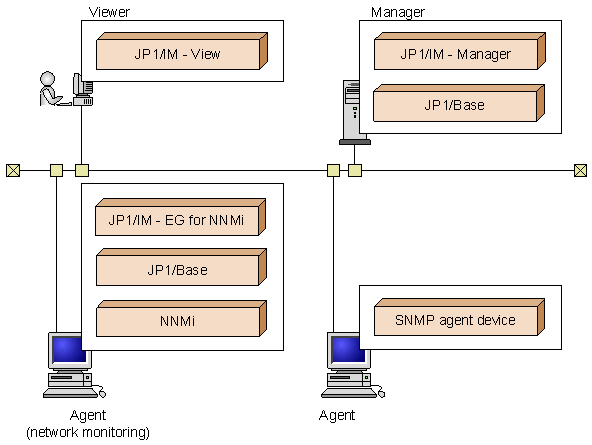

JP1/IM - EG for NNMi is installed together with JP1/Base and NNMi on an agent. The following figure shows an example of a system configuration for JP1/IM - EG for NNMi.
- Cluster system support
-
JP1/IM - EG for NNMi supports operations in a cluster system. By applying JP1/IM - EG for NNMi to a cluster, you can inherit processing from the primary node to the secondary node in the event of a server failure.
- Organization of this section
