1.2 Overview of operation using JP1/IM - EG for NNMi

The following figure provides an overview of using JP1/IM - EG for NNMi to convert NNMi incidents into JP1 events and then using JP1/IM to manage and monitor the converted JP1 events.

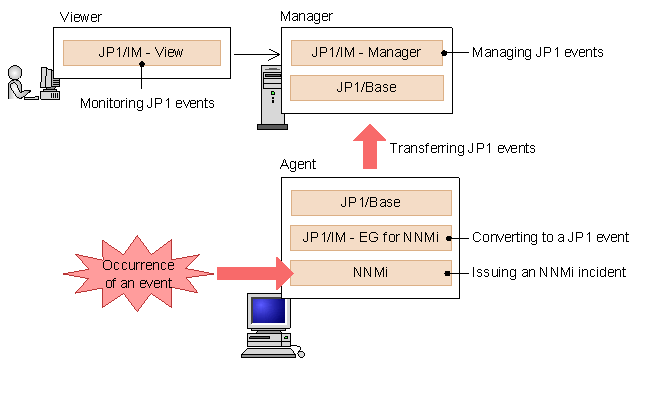

Figure 1‒1: Managing and monitoring JP1 events converted by JP1/IM - EG for NNMi

NNMi issues an NNMi incident whenever an event such as a failure occurs in a network device. Periodically, JP1/IM - EG for NNMi acquires the NNMi incidents issued by NNMi and converts them into JP1 events. If you define filter conditions, you can convert only specific NNMi incidents into JP1 events.

The JP1 events converted by JP1/IM - EG for NNMi are registered into JP1/Base's event database and then forwarded to the manager host. They are then registered into the JP1/Base event database at the manager host, from where they can be managed centrally by JP1/IM - Manager.

The converted JP1 events can be viewed in the Event Console window of JP1/IM - View. When necessary, you can open the NNMi window from the Event Console window to check why events occurred.
