Function
The TCP (PI_TCP) record stores information about TCP service response time. This is a multi-instance record.
Default and changeable values
| Item | Default value | Changeable |
|---|---|---|
| Collection Interval | 360 | Y |
| Collection Offset | 0 | Y |
| Log | No | Y |
| LOGIF | (Blank) | Y |
ODBC key fields
PI_TCP_MSR_COND_ID
Lifetime
None
Record size
Fields
| View name (Manager name) |
Description | Summary rule | Format | Delta | Data source |
|---|---|---|---|---|---|
| DNS Time (DNS_TIME) |
DNS time (seconds) ((2) in Figure 9-9) | AVG | double | No | Probe Daemon |
| TCP Connection Time (TCP_CON_TIME) |
TCP connection time (seconds) ((3) in Figure 9-9) | AVG | double | No | Probe Daemon |
| Total Response Time (TOTAL_RESP_TIME) |
Total response time (seconds) ((1) in Figure 9-9) | AVG | double | No | Probe Daemon |

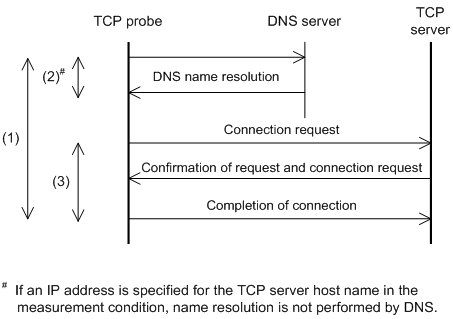

The following figure shows the TCP sequence.
Figure 9-9 TCP sequence
![[Figure]](FIGURE/ZUV09090.GIF)
TCP operating environment and notes
A TCP probe measures the time required for establishing connection with the server that provides the TCP service.
The following describes and provides notes on a TCP operating environment.
RFC compliance
