The HTTP (PI_HTP) record stores information about HTTP service response time. This is a multi-instance record.

Item	Default value	Changeable
Collection Interval	360	Y
Collection Offset	0	Y
Log	No	Y
LOGIF	(Blank)	Y

PI_HTP_MSR_COND_ID

None

• Fixed part: 681 bytes
• Variable part: 360 bytes

View name (Manager name)	Description	Summary rule	Format	Delta	Data source
DNS Time (DNS_TIME)	DNS time (seconds) ((4) in Figure 9-4)	AVG	double	No	Probe Daemon
Data Transfer Time (DATA_TRANS_TIME)	Data transfer time (seconds) ((7) in Figure 9-4)	AVG	double	No	Probe Daemon
HTTP Time (HTTP_TIME)	HTTP time (seconds) ((3) in Figure 9-4)	AVG	double	No	Probe Daemon
Request Count (REQ_COUNT)	Number of requests issued (count)	AVG	double	No	Probe Daemon
Server Processing Time (SERV_PROCESS_TIME)	Server processing time (seconds) ((6) in Figure 9-4)	AVG	double	No	Probe Daemon
Setup Time (SETUP_TIME)	Setup time (seconds) ((2) in Figure 9-4)	AVG	double	No	Probe Daemon
TCP Connection Time (TCP_CON_TIME)	TCP connection time (seconds) ((5) in Figure 9-4)	AVG	double	No	Probe Daemon
Throughput (THROUGHPUT)	Resource transfer throughput (bits/second). This is determined by the total size of resources and the data transfer time.	AVG	double	No	Probe Daemon
Total Amount of Data (TOTAL_DATA_SIZE)	Total amount of data transferred between the HTTP probe and the measurement-target server via the TCP connection (bytes)	AVG	double	No	Probe Daemon
Total Resource Size (TOTAL_RES_SIZE)	Total size of resources acquired (bytes)	AVG	double	No	Probe Daemon
Total Response Time (TOTAL_RESP_TIME)	Total response time (seconds) ((1) in Figure 9-4)	AVG	double	No	Probe Daemon

Note:

If the page to be measured contains embedded images and frames, and if the depth of measurement condition is 2 or greater, measurement is executed more than once. In such a case, the value of each item, except the throughput, is the sum of the results obtained by the multiple measurements.

The following figure shows the HTTP sequence.

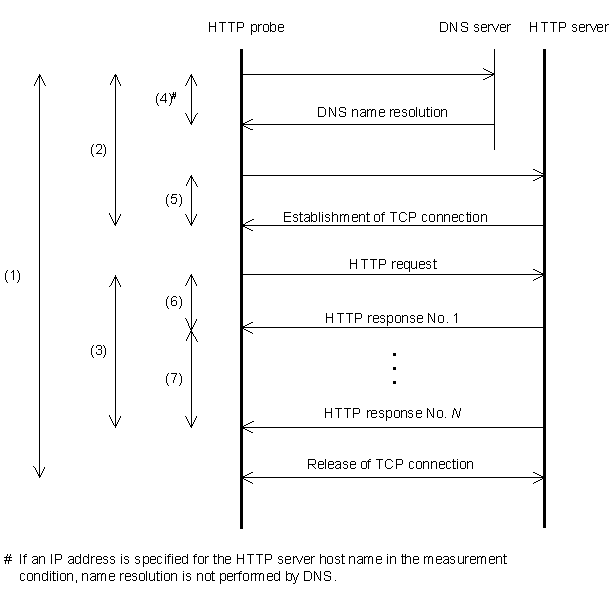

Figure 9-4 HTTP sequence

A HTTP probe issues a HTTP request to the specified URL, uses the GET method to acquire the page or the POST method to register data, and measures the response time.

The following describes and provides notes on a HTTP operating environment.

Web authentication

The Basic Authentication method is used.

Cookie

PFM - Agent for Service Response accepts cookies based on Netscape Communication's specifications. The information sent as a cookie from the HTTP server is stored in the Cookie file that is created for each measurement condition. The Cookie files remain undeleted even after measurement is completed. If measurement cannot be performed correctly due to a change made to the contents of a measurement condition, delete the Cookie file for that measurement condition, which can be identified by the measurement condition ID. The following is the naming convention for Cookie files:

cookies_<measurement-condition-ID>

Cookie files are stored in the following folder:


installation-folder\agtv\probe\probedata\http

Program execution

Plug-ins, JavaScripts, and applets are downloaded but not executed.

Depth

For example, specifying a depth of 2 acquires the pages displayed in the resources and frames that are embedded in the page at the specified URL. No linked pages are acquired. PFM - Agent for Service Response repeats the acquisition of resources and frames embedded in the acquired page or frame as many times as the specified value.

For the embedded resources and frames, PFM - Agent for Service Response analyzes the acquired HTML, and acquires the resources and frames that are specified by the value of the tag and attribute shown in the table below.

Table 9-15 Embedded resources and frames to be acquired

Tag name	Attribute name
applet	code
frame	src
iframe	src
img	src
script	src

The resources and frames embedded in the HTTP responses compressed by the tool such as gzip or compress are not acquired.

Use of proxy

If acquiring the Web page specified by the URL and the embedded resources and frames involves use of a proxy for only part of the acquisition target, measurement cannot be performed.

HTTP Version

HTTP/1.0 is applicable.

RFC compliance

• RFC1866: Hypertext Markup Language - 2.0
• RFC2616: Hypertext Transfer Protocol - HTTP/1.1
• RFC2396: Uniform Resource Identifiers (URI): Generic Syntax

For the functions that are not compliance with RFCs and the restrictions, see the above notes.
