The FTP (PI_FTP) record stores information about FTP service response time. This is a multi-instance record.

Item	Default value	Changeable
Collection Interval	360	Y
Collection Offset	0	Y
Log	No	Y
LOGIF	(Blank)	Y

PI_FTP_MSR_COND_ID

None

• Fixed part: 681 bytes
• Variable part: 340 bytes

View name (Manager name)	Description	Summary rule	Format	Delta	Data source
Data Transfer Time (DATA_TRANS_TIME)	Data transfer time (seconds) ((7) in Figure 9-3)	AVG	double	No	Probe Daemon
DNS Time (DNS_TIME)	DNS time (seconds) ((4) in Figure 9-3)	AVG	double	No	Probe Daemon
FTP Time (FTP_TIME)	FTP time (seconds) ((3) in Figure 9-3)	AVG	double	No	Probe Daemon
Preprocessing Time (PRE_PROCESS_TIME)	Preprocessing time (seconds) ((6) in Figure 9-3)	AVG	double	No	Probe Daemon
Setup Time (SETUP_TIME)	Setup time (seconds) ((2) in Figure 9-3)	AVG	double	No	Probe Daemon
TCP Connection Time (TCP_CON_TIME)	TCP connection time (seconds) ((5) in Figure 9-3)	AVG	double	No	Probe Daemon
Throughput (THROUGHPUT)	Throughput (bits/second). This is determined by the size of the file to be transferred and the data transfer time.	AVG	double	No	Probe Daemon
Total Amount of Data (TOTAL_DATA_SIZE)	Total amount of data transferred between the FTP probe and the measurement-target server via the TCP connection (bytes)	AVG	double	No	Probe Daemon
Total Response Time (TOTAL_RESP_TIME)	Total response time (seconds) ((1) in Figure 9-3)	AVG	double	No	Probe Daemon
Transfer File Size (TRANS_FILE_SIZE)	Size of the transferred file	AVG	double	No	Probe Daemon

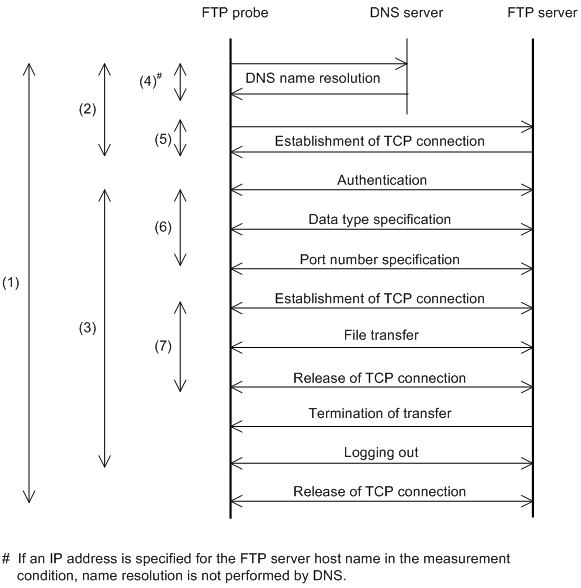

The following figure shows the FTP sequence.

Figure 9-3 FTP sequence

A FTP probe acquires a measurement file from the measurement-target FTP server, or transfers a prepared measurement file to the measurement-target server and measures the time required for file transfer. The measurement file must already be stored in the following folder:

• Transfer to the FTP server
  installation-folder\agtv\probedata\ftp

• Transfer from the FTP server
  Under the user's home directory specified in the measurement condition


The following describes and provides notes on a FTP operating environment.

Handling of the transferred file

Handling of the transferred file depends on the transfer direction, as described below:

UPLOAD

If the file to be transferred has the same name as a file in the home directory of a user at the target FTP server, the file is overwritten. Therefore, the total size of the data in the target measurement file does not keep increasing.

DOWNLOAD

Data in the acquired file is discarded each time measurement is completed.

Data type during transfer

The FTP probe supports only the ASCII data type during transfer.

RFC compliance

• RFC959: File Transfer Protocol (FTP)

For the functions that are not compliance with RFCs and the restrictions, see the above notes.
