1.7.3 Window for creating a new alarm table definition
This window is used to create a new alarm table definition. To display this window, in the Alarms window, from the method frame, choose New Alarm Table. The New Alarm Table > Main Information window is displayed.

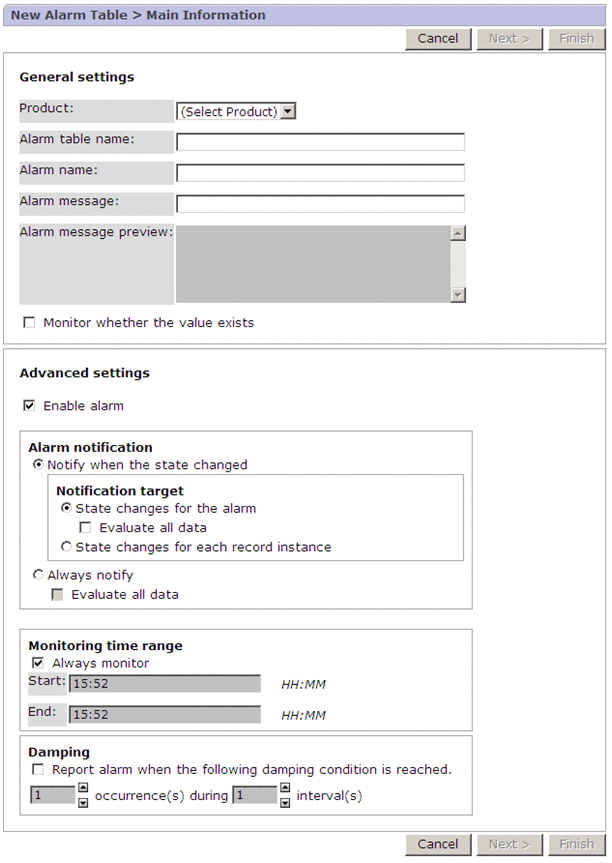

The following figure shows the New Alarm Table > Main Information window.
|
|
![[Figure]](GRAPHICS/ZU201731.GIF)
The following describes the displayed items:
- Cancel button
-
Cancels creation of an alarm table.
- Next > button
-
Displays the next window. This button is enabled when Product, Alarm table name, and Alarm name are specified.
For details, see 1.7.4(1) New Alarm > Main Information window or Edit > Main Information window.
For details , see 1.7.4(1) New Alarm > Main Information window or Edit > Main Information window.
- Finish button
-
Saves the settings, and ends creation of the alarm table.
This button is available when values are entered in Product, Alarm table name, and Alarm name, and values are set in the New Alarm Table > Alarm Conditions window, which opens next.
- General settings
-
Explains the definition items for an alarm table. Except for the following items, the items in the window are alarm definition items. For details about the alarm definition items, see 1.7.4(1) New Alarm > Main Information window or Edit > Main Information window. Make sure to replace New Alarm, a window name in the reference section, with New Alarm Table.
- Product
-
From the pull-down menu, select the type of PFM - Agent or PFM - RM product for which an alarm table is to be created. In the pull-down menu, the PFM - Agent or PFM - RM products are displayed. If multiple data model versions are installed on PFM - Agent or PFM - RM, the version is displayed in parentheses.
This item can be set only when a new alarm table is to be created. It cannot be changed when alarms are added or edited.
- Alarm table name
-
Specify the alarm table name by using no more than 64 bytes of two-byte characters, single-byte alphanumeric characters, the single-byte symbols % - ( ) _ . / @ [ ], and spaces. This name cannot begin with PFM, whether upper case or lower case.
This item can be set only when a new alarm table is to be created. It cannot be changed when alarms are added or edited.
- Advanced settings
-
These are alarm definition items. For details, see 1.7.4(1) New Alarm > Main Information window or Edit > Main Information window.
