7.4.6 Select Service Share Property dialog box

Use the Select Service Share Property dialog box to set service share properties as input properties for a service. To display the Select Service Share Property dialog box, click the Select Service Share Property button in the Edit Service Definition dialog box or in the Specify Plug-in Input Properties for Mapping dialog box.

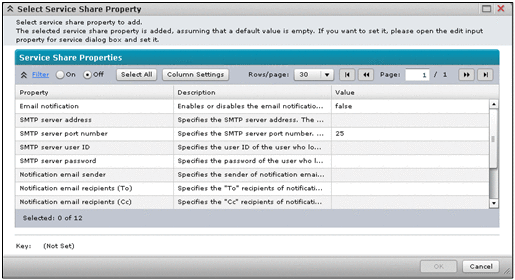

Figure 7-37 Select Service Share Property dialog box

This dialog box displays the following items:

Service Share Properties

Displays a list of service share properties. Select service share properties you want to set as input properties for the service. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 7-25 Items displayed in Service Share Properties (Select Service Share Property dialog box)

Display item	Displayed by default	Description
Property	Yes	Displays the name of each service share property.
Description	Yes	Displays a brief description of each service share property.
Value	Yes	Displays the value of each service share property.
Key	No	Displays the property key for each service share property.
#	No	Displays the serial number of each service share property.

Legend:

Yes: Displayed by default, No: Hidden by default

Key

Shows the property key of the selected service share property.

Property Group list box

Select the property group that you want the selected service share property to belong to. In this list box, the names of the property groups defined in the Edit Service Definition dialog box are displayed as options.

OK button

Click this button to add the selected service share property to the input properties for the service.

Cancel button

Click this button to close the Select Service Share Property dialog box.
