7.4.5 Edit Property Group dialog box

Use the Edit Property Group dialog box to edit the definition information of a property group. To display the Edit Property Group dialog box, in the Edit Service Definition dialog box, click the Edit button in the Property Groups section.

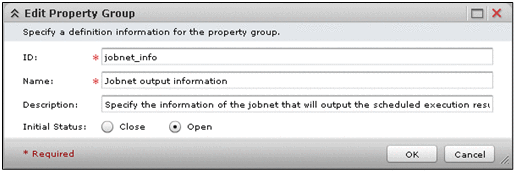

Figure 7-36 Edit Property Group dialog box

This dialog box displays the following items:

ID text box

Enter the ID of the property group. The text box allows a maximum of 32 characters.

Name text box

Enter the name of the property group. The text box allows a maximum of 64 characters.

Description text box

Enter a brief description of the property group. The text box allows a maximum of 256 characters.

Initial Status radio button

Select the initial display status of the property group in the Service Definition dialog box and in the Submit Service dialog box.

• Close
  If you select this option, only the name of the property group is displayed, and the properties belonging to the property group are not displayed.

• Open
  If you select this option, the name of the property group and the properties belonging to the property group are displayed.


OK button

Click this button to apply the changes.

Cancel button

Click this button to close the Edit Property Group dialog box.
