7.4.3 Edit Service Definition dialog box

Use the Edit Service Definition dialog box to edit the definition information of a service. To display the Edit Service Definition dialog box, click the Edit Service Definition button in the service template editing view.

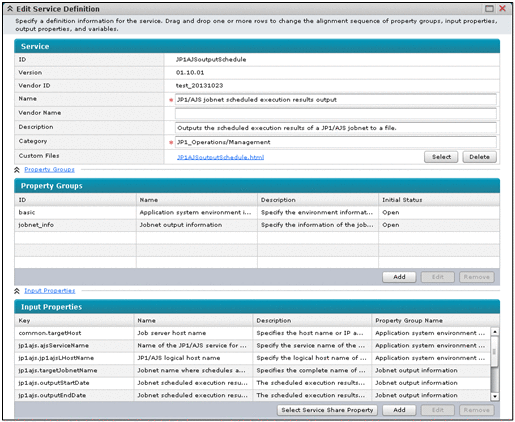

Figure 7-33 Edit Service Definition dialog box (1/2)

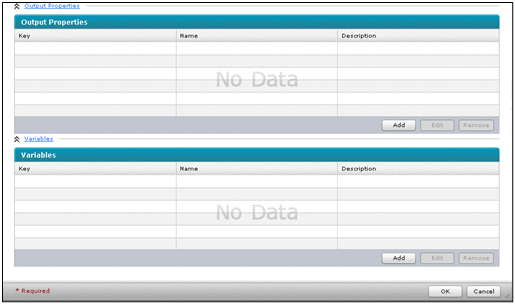

Figure 7-34 Edit Service Definition dialog box (2/2)

This dialog box displays the following items:

Service

Use this section to specify the definition information of the service you are editing.

ID

Shows the ID of the service template.

Version

Shows the version of the service template.

Vendor ID

Shows the ID of the service template's vendor.

Name text box

Enter the name of the service template. The text box allows a maximum of 64 characters.

Vendor Name text box

Enter the name of the service template's vendor. The text box allows a maximum of 64 characters.

Description text box

Enter a brief description of the service template. The text box allows a maximum of 256 characters.

Category text box

Enter the category name of the service template. The text box allows a maximum of 256 characters. If you use a hierarchical category name, delimit individual layers with a slash (/). You can use a maximum of 10 layers for a category name. If you want to set a service template in multiple categories, delimit the category names with a comma (,). Make sure that you enter values for all layers of a category name.

Custom Files

Shows the custom file set for the service template. Click the file name to download the file.

Select button

Click this button to select a custom file. A dialog box appears that is used to select a folder. Specify a custom file name with no more than 64 characters. (If you specify a zip file, the relative path to the custom file in the zip file must have no more than 64 characters.) Also, the total number of characters entered in the ID, Vendor ID, and Name text boxes must be no more than 131. (If you specify a zip file, the relative path to the custom file in the zip file must be assumed as the file name. Then the total must be no more than 131 characters.)

Delete button

Click this button to clear the specified custom file.

Custom File Name for Service Details Dialog text box

Specify the relative path to the Service Details window file in the zip file. Specify a custom file name so that the relative path has no more than 64 characters and the total number of characters entered in the ID, Vendor ID, and Name text boxes is no more than 131. The Custom File Name for Service Details Dialog text box is displayed when you specify a zip file as the custom file.

Property Groups

Click this to display a list of property groups.

Property Groups

Displays a list of property groups.

Table 7-21 Items displayed in Property Groups (Edit Service Definition dialog box)

Display item	Description
ID	Displays the ID of each property group.
Name	Displays the name of each property group.
Description	Displays a brief description of each property group.
Initial Status	Displays the initial display status of each property group.

Add button

Click this button to create a property group. The Create Property Group dialog box appears.

Edit button

Click this button to edit the selected property group. The Edit Property Group dialog box is displayed.

Remove button

Click this button to remove the selected property group. A confirmation dialog box appears. If you click the OK button, the property group is deleted.

Input Properties

Click this to display a list of input properties.

Input Properties

Displays a list of input properties.

Table 7-22 Items displayed in Input Properties (Edit Service Definition dialog box)

Display item	Description
Key	Displays the property key of each input property.
Name	Displays the name of each input property.
Description	Displays a brief description of each input property.
Property Group Name	Displays the property group name for each input property.

Select Service Share Property button

Click this button to add a service share property to input properties. The Select Service Share Property dialog box appears.

Add button

Click this button to create an input property. The Create Input Property for Service dialog box appears.

Edit button

Click this button to edit the selected input property. The Edit Input Property for Service dialog box appears.

Remove button

Click this button to remove the selected input property. A confirmation dialog box appears. If you click the OK button, the input property is deleted.

Output Properties

Click this to display a list of output properties.

Output Properties

Displays a list of output properties.

Table 7-23 Items displayed in Output Properties (Edit Service Definition dialog box)

Display item	Description
Key	Displays the property key of each output property.
Name	Displays the name of each output property.
Description	Displays a brief description of each output property.

Add button

Click this button to create an output property. The Create Output Property for Service dialog box appears.

Edit button

Click this button to edit the selected output property. The Edit Output Property for Service dialog box appears.

Remove button

Click this button to remove the selected output property. A confirmation dialog box appears. If you click the OK button, the output property is deleted.

Variables

Click this to display a list of variables.

Variables

Displays a list of variables.

Table 7-24 Items displayed in Variables (Edit Service Definition dialog box)

Display item	Description
Key	Displays the property key of each variable.
Name	Displays the property name of each variable.
Description	Displays a brief description of each variable.

Add button

Click this button to create a variable. The Create Variable dialog box appears.

Edit button

Click this button to edit the selected variable. The Edit Variable dialog box appears.

Remove button

Click this button to remove the selected variable. A confirmation dialog box appears. If you click the OK button, the variable is deleted.

OK button

Click this button to apply the changes.

Cancel button

Click this button to close the Edit Service Definition dialog box.
