7.4.2 Build / Release Result dialog box

Use the Build / Release Result dialog box to check the result or progress of the build or release processing for a service template. To display the Build / Release Result dialog box, click the Build or Release button in the service template editing view. Then click the OK button in the confirmation message dialog box. The Build / Release Result dialog box appears.

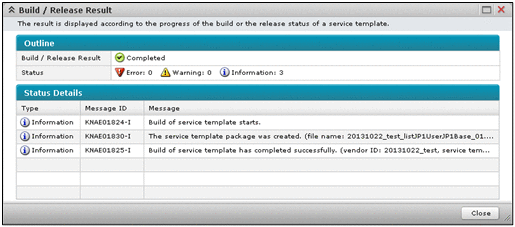

Figure 7-32 Build / Release Result dialog box

This dialog box displays the following items:

Outline

This section displays the result or progress of the build or release processing. It also shows the number of messages output when the processing was executed.

Build / Release Result

Shows the result or progress of the build or release processing.

Status

Shows the number of messages output when you built or released the service template.

Status Details

Displays a list of messages that were output when you built or released the service template. If you click the column title of a display item, the data will be sorted in ascending or descending order.

Table 7-20 Items displayed in Status Details (Build / Release Result dialog box)

Display item	Description
Type	Displays the type of each message. Error Indicates that an error message was output when you built or released the service template. Warning Indicates that a warning message was output when you built or released the service template. Information Indicates that an information message was output when you built or released the service template.
Message ID	Displays the ID of each message.
Message	Displays the contents of each message.

Close button

Click this button to close the Build / Release Result dialog box.
